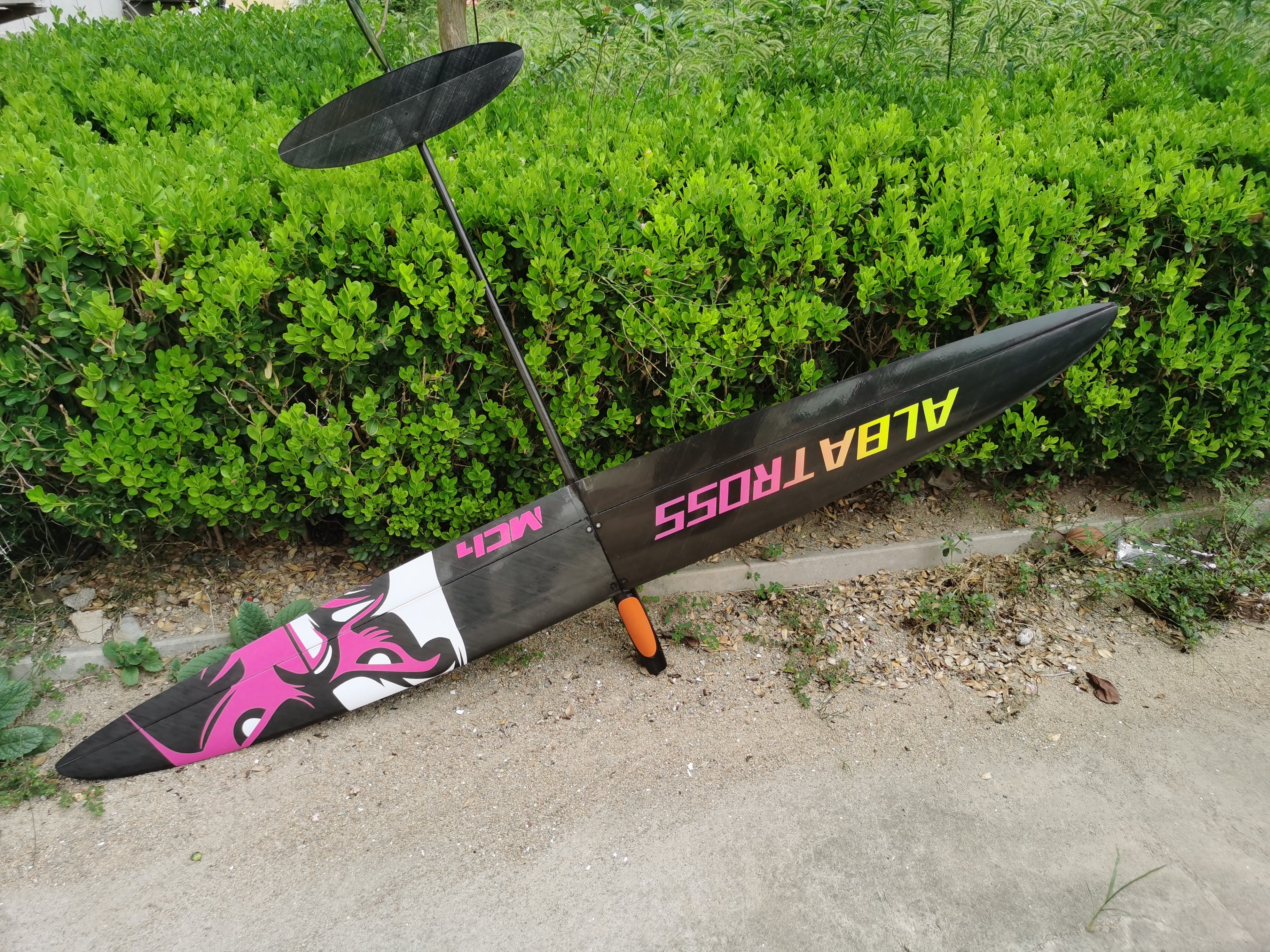

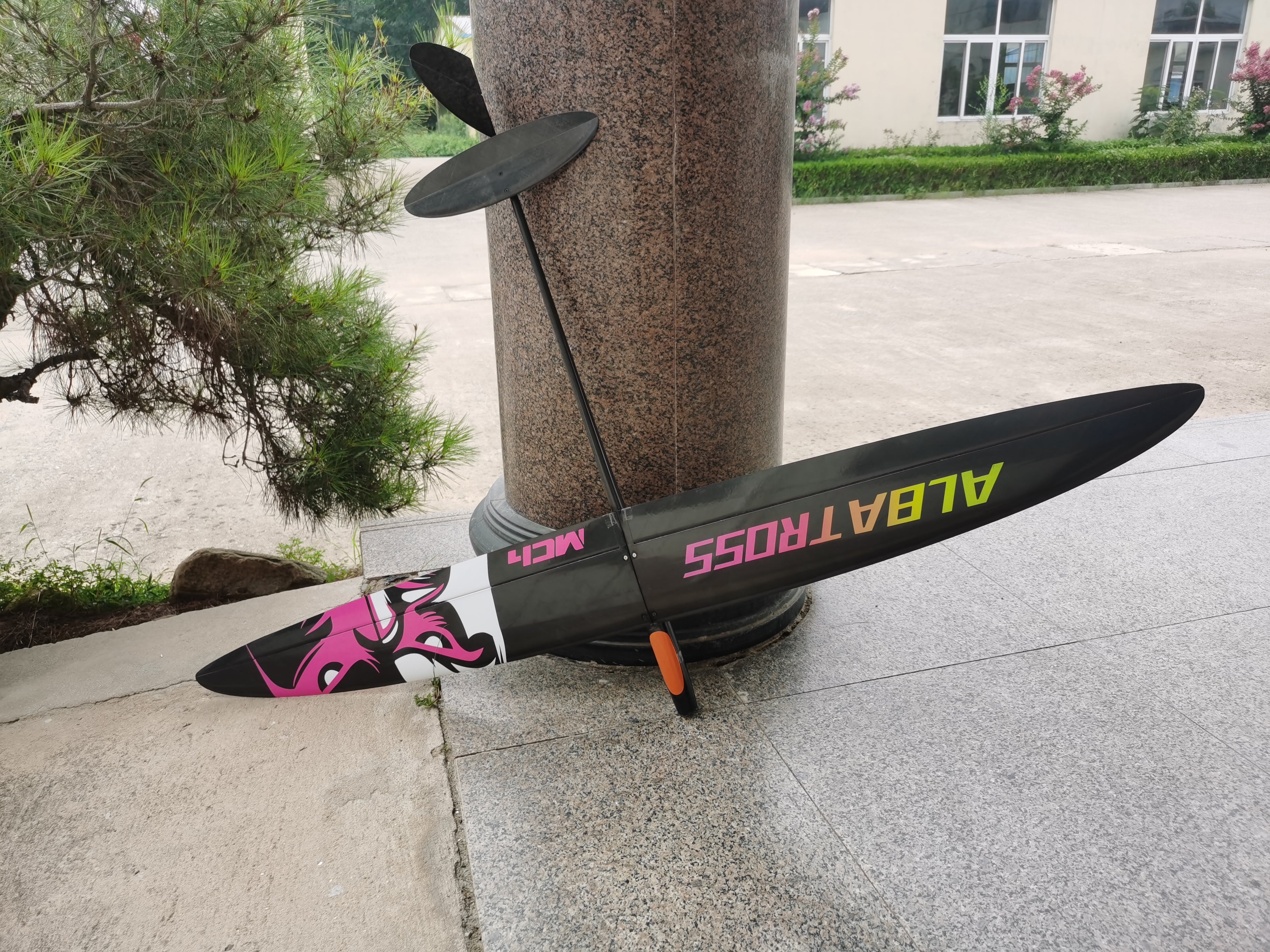

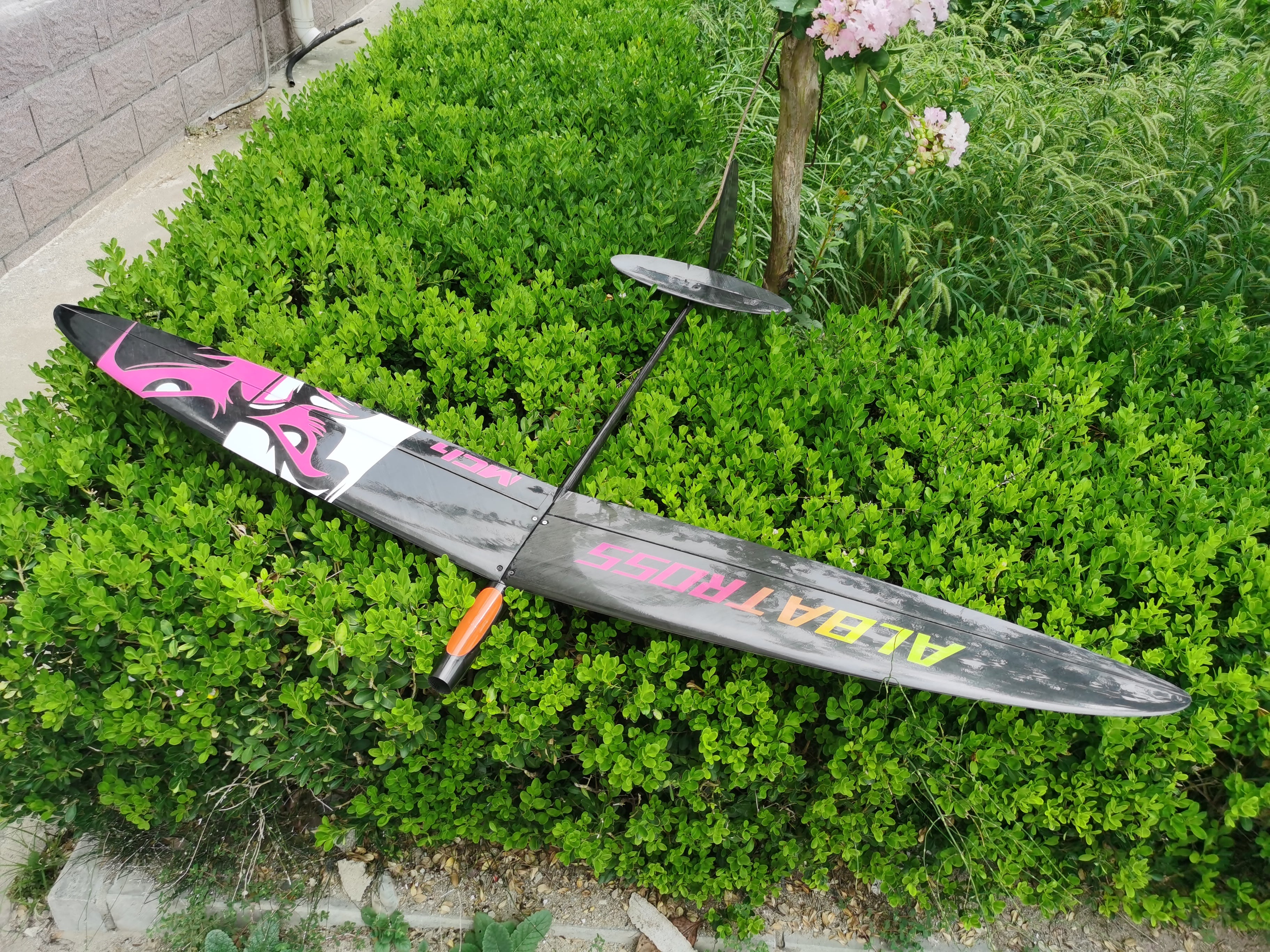

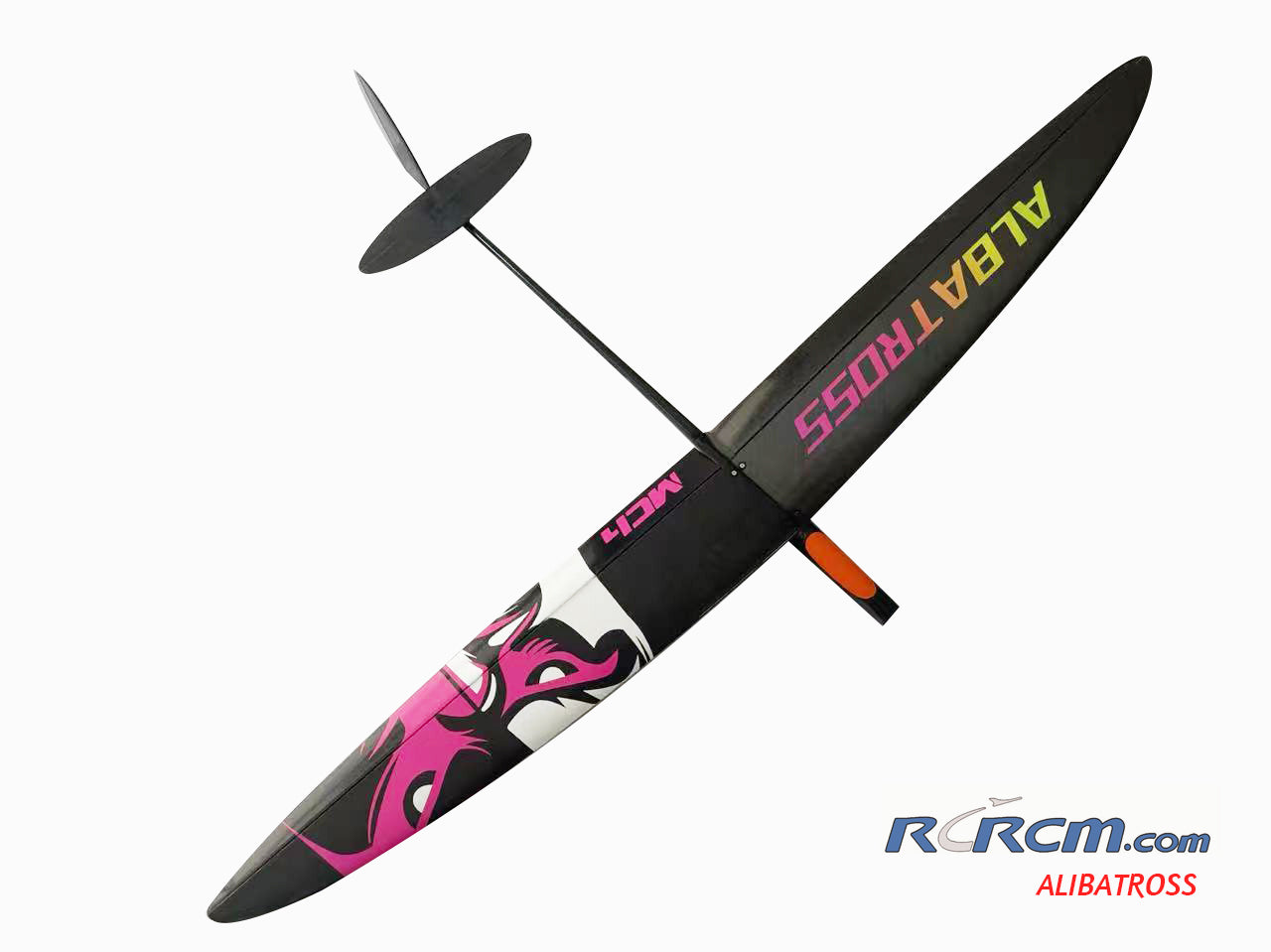

ALIBATROSS XTail
DESCRIPTION:
ALIBATROSS is "as light as a butterfly and as resolute as an eagle". The designer incorporates the metaphor of freedom of boxing champion ALIBATROSS into the philosophy of flight. When the carbon fiber shell evaporates hot air in the sun, the wings cut through the air like butterfly wings, and the name ALIBATROSS carries the most authentic desire of mankind for the sky. This is not an imitation of boxing techniques, but a translation of the spirit of fighters: every climb against the wind is against gravity, and every inch of the cloud track is engraved with the courage to surpass weight. We believe that all those who have their hearts set on the sky will eventually reach the clouds, just as ALIBATROSS means "the highest place" in Persian.
SPECIFICATIONS:
Preferences Motor
Wing span 1490mm
Length 94mm
Area 20.1dm2
Empty weight 150-160g
Flying weight 280-320g
CG 72-76mm from leading edge
Tow hook setting NO
Ailerons YES
Elevator YES
Rudder YES
Flaps NO
Required Radio 4 channels
Recommend equipment configuration for a motorless version basic configuration
Motor LC2207-2400KV
Spinner 30mm
Propeller 9*6”
ESC Skywalker 40A
Battery 2S650
Servos PTK
Settings:
Launch: +0mm
Zoom: +1mm
Speed: +2mm
Thermal: -4~-2mm
Brake: as much as possible
Aileron: +12mm/-10mm
Elevator: +10mm/-10mm
Rudder: +15mm/-15mm
Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.
Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.
