DESCRIPTION

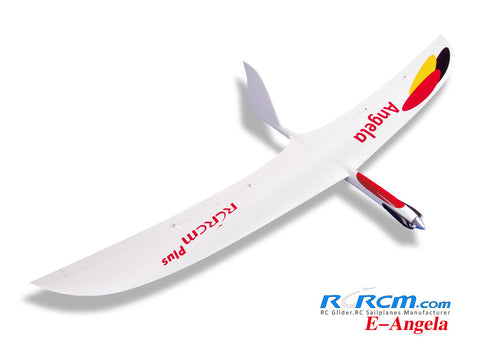

2000mm Wingspan RCRCM RC Glider – Angela

Superb flying wing - Angela is fully molded with composite material, it has good performance in slope soaring. Angela is equipped with ailerons, flaps and rudder. It looks like a “pterodactyl” when flying in the sky!



Available in 3 Versions:

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).



Features:

  • Completely new special design.
  • Friendly Flying Characteristics
  • Top Quality finish
  • Easy Handling
  • 2000mm Wingspan



Includes:

  • 2000mm Wingspan RCRCM RC Glider
  • Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate

E-ANGELA WING SPECIFICATIONS:

Preferences                MOTOR

Wingspan:                   2000mm

Length:                         800mm

Wing area:                   35dm2

Flying Weight:               N/A

Empty Weight:             Fiberglass+Carbon Standard Version:730g
                                     Carbon Version: 840g

CG:                              65-68 mm from leading edge

Tow hook setting         NO

Ailerons                       YES

Elevator                       NO

Rudder                        YES

Flaps                            YES

Required Radio            No less than 6 channels



Recommend equipment configuration for an electric version

Basic configuration



Servos for wings        KST DS135MG*4(or similar torque servo)

Servos for fuselage        KST X08H*1(or similar torque servo)

Required Battery           3S 11.1V 1500mah 25c

Power System          LC2835-7T KV1880

Motor Mount Dia.:(mm)   35mm

Electronic Speed Control  SkyWalker-40A

Fairing size:(mm)     38mm

Propeller/EDF             11*6

Angela setting:

Ailerons: +/- 10mm

Elevator: AL+FLP +/-8mm

Butterfly: AL 8mm UP, FLP 25mm DOWN

Neutral: AL+FLP 2mm UP

CG: 65-68mm



Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.

Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.

Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.

E-Angela Manual
