E-DG600
Move your mouse over image or click to enlarge
E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600 E-DG600

RCRCM.com

E-DG600

$599.99

DESCRIPTION

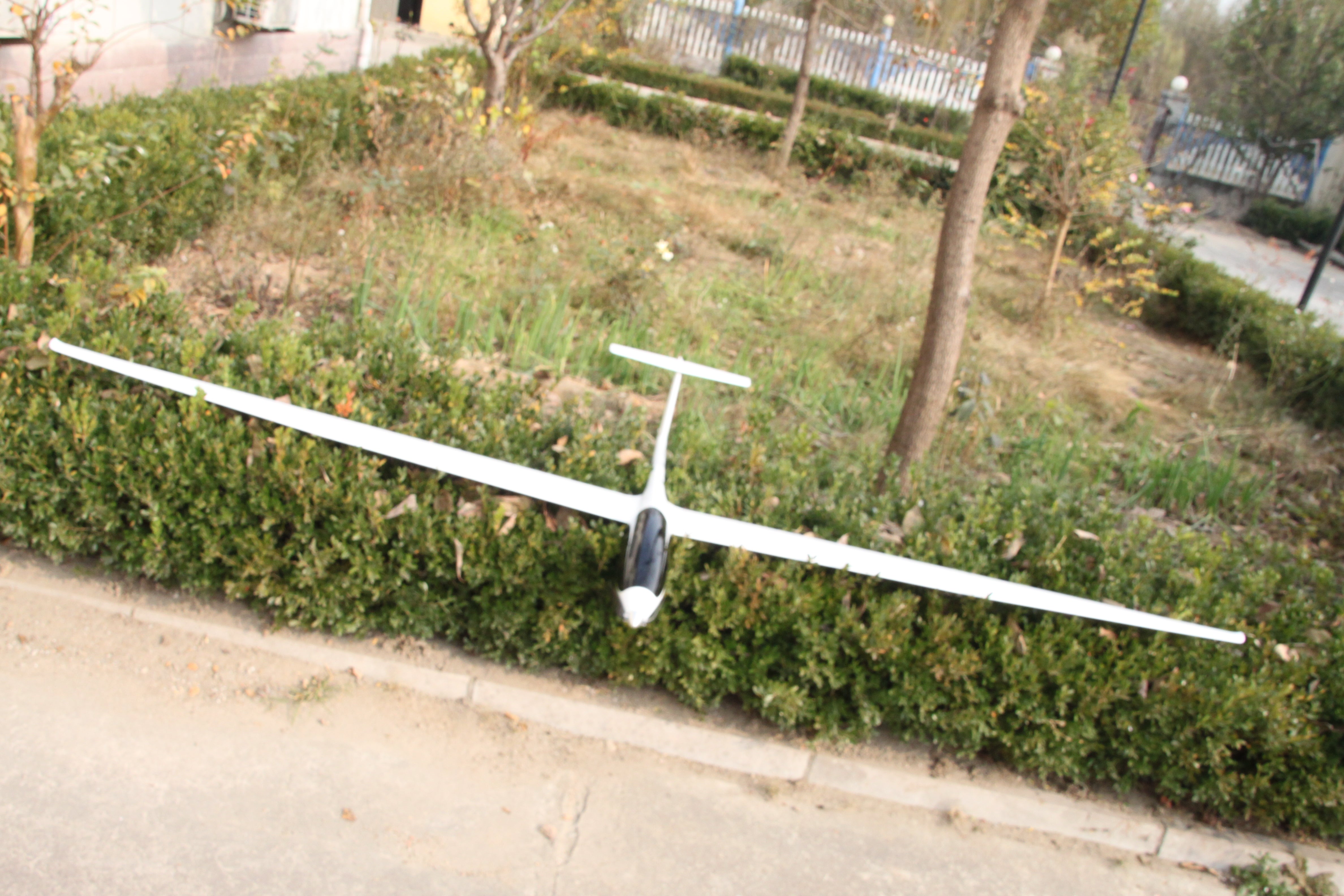

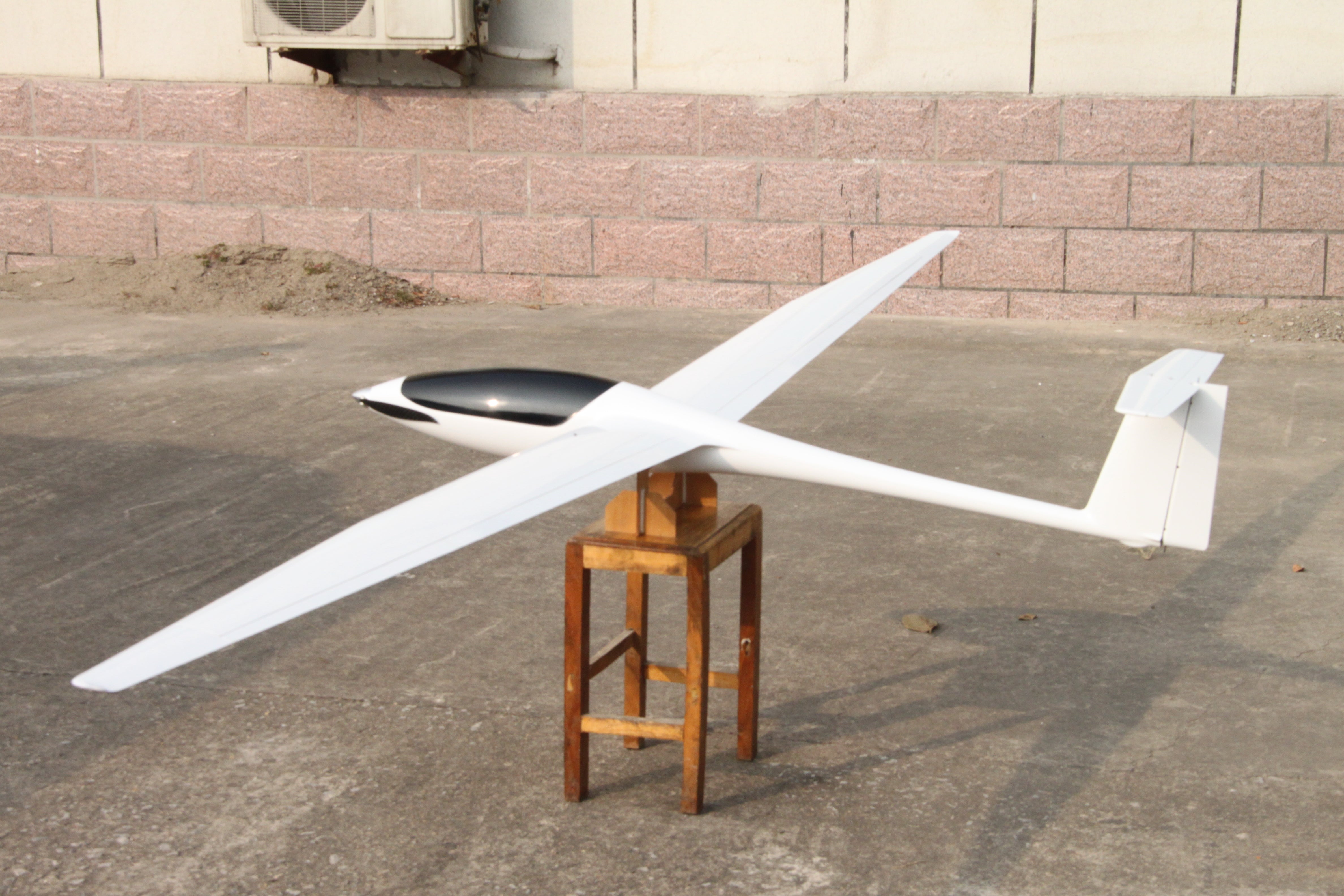

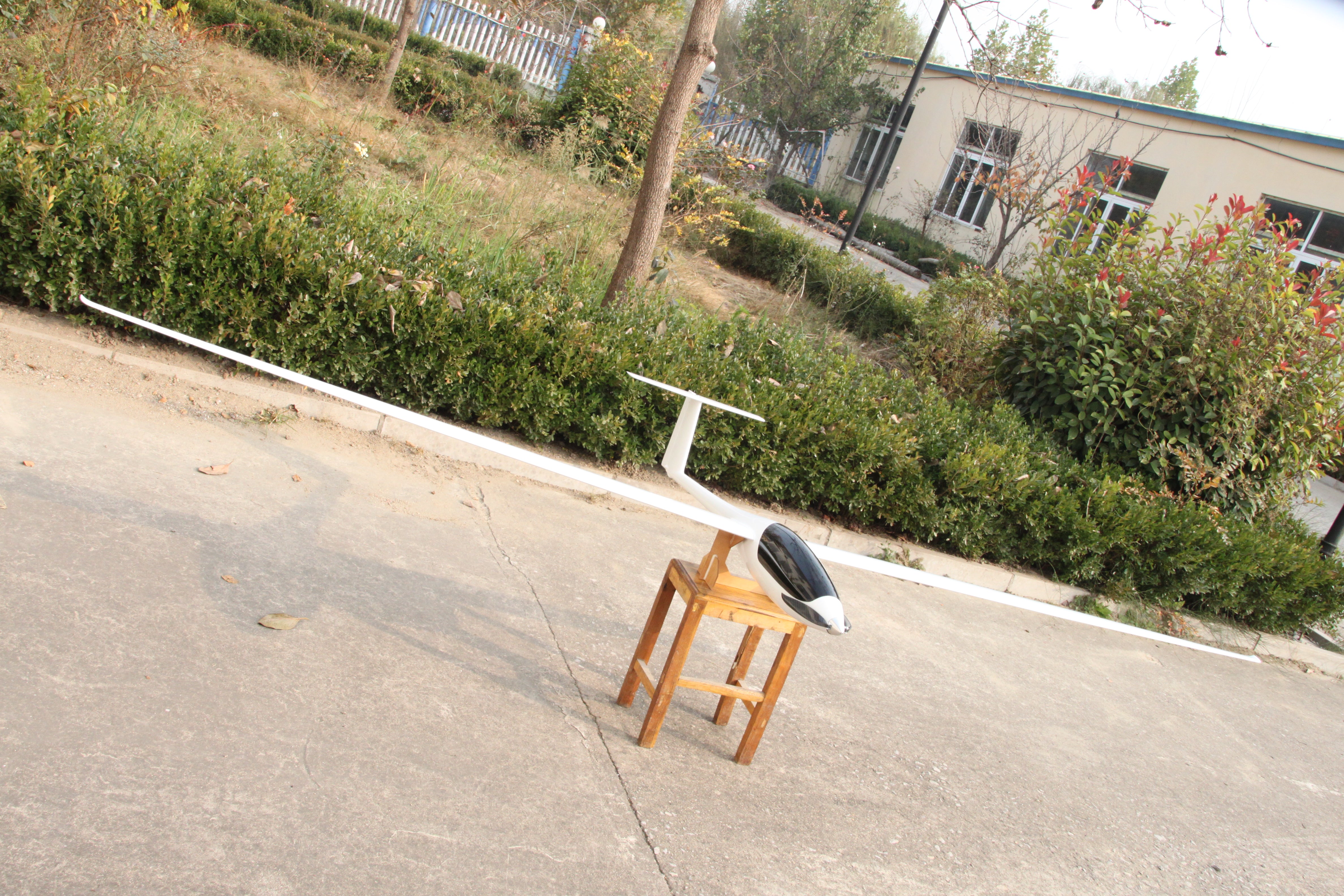

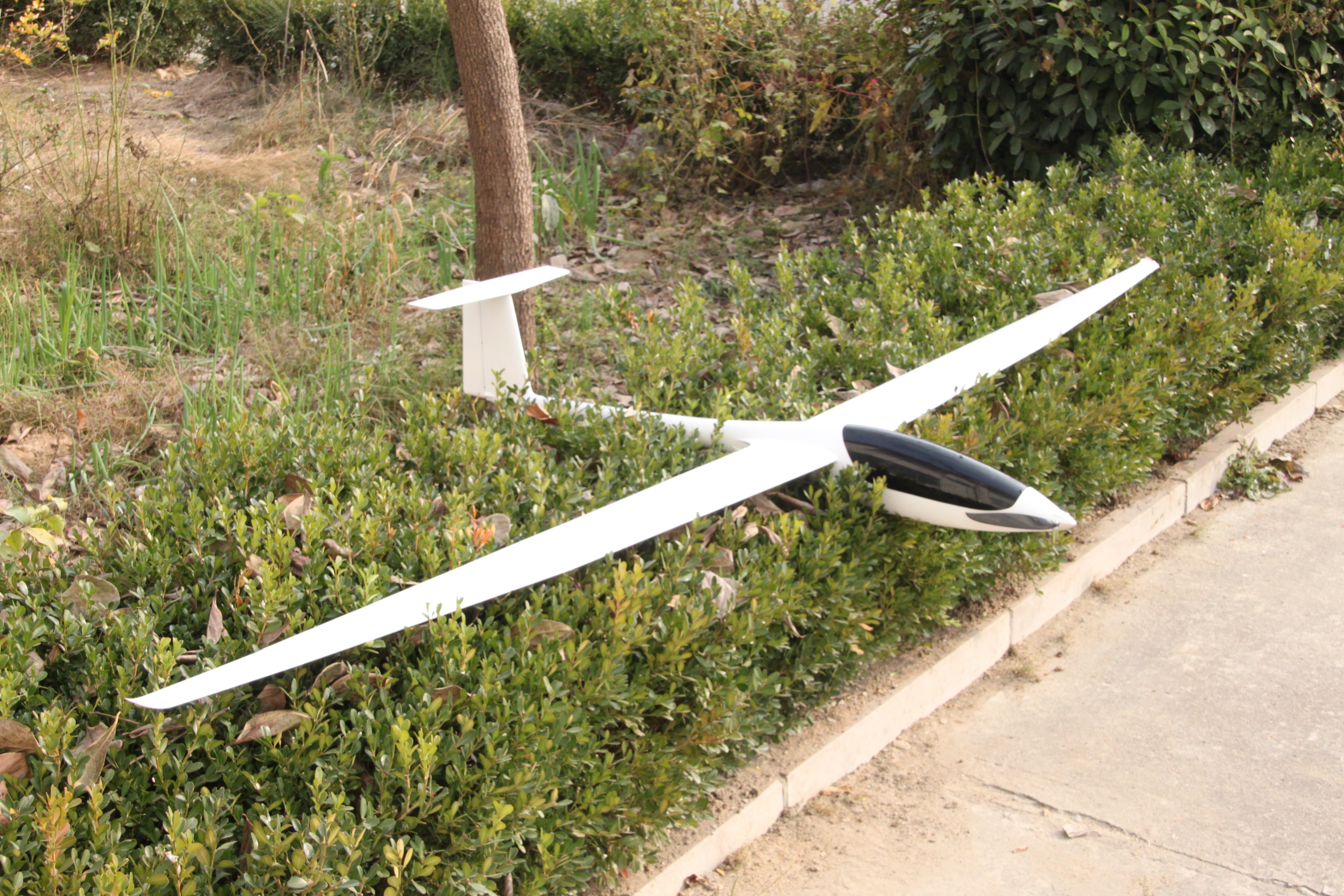

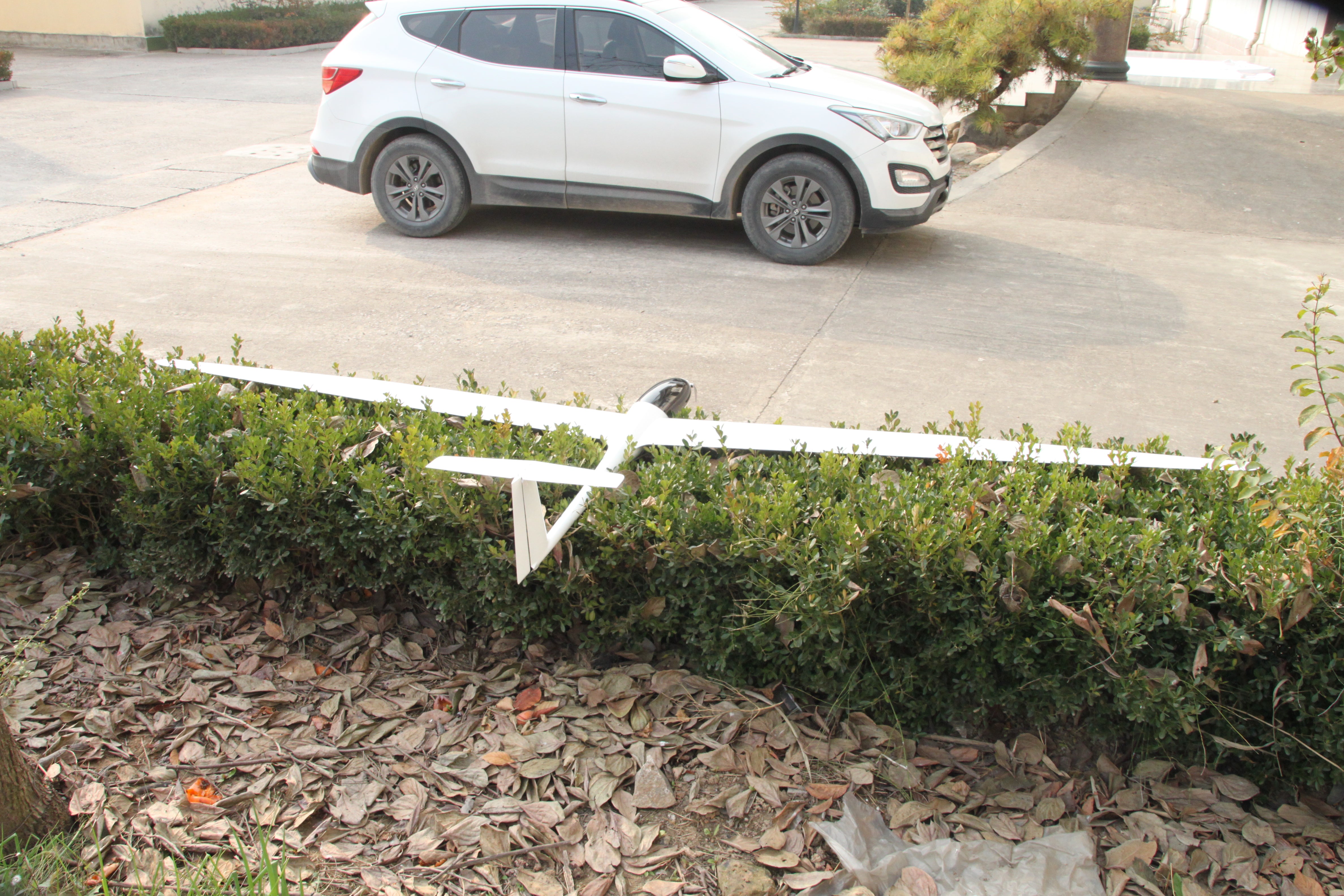

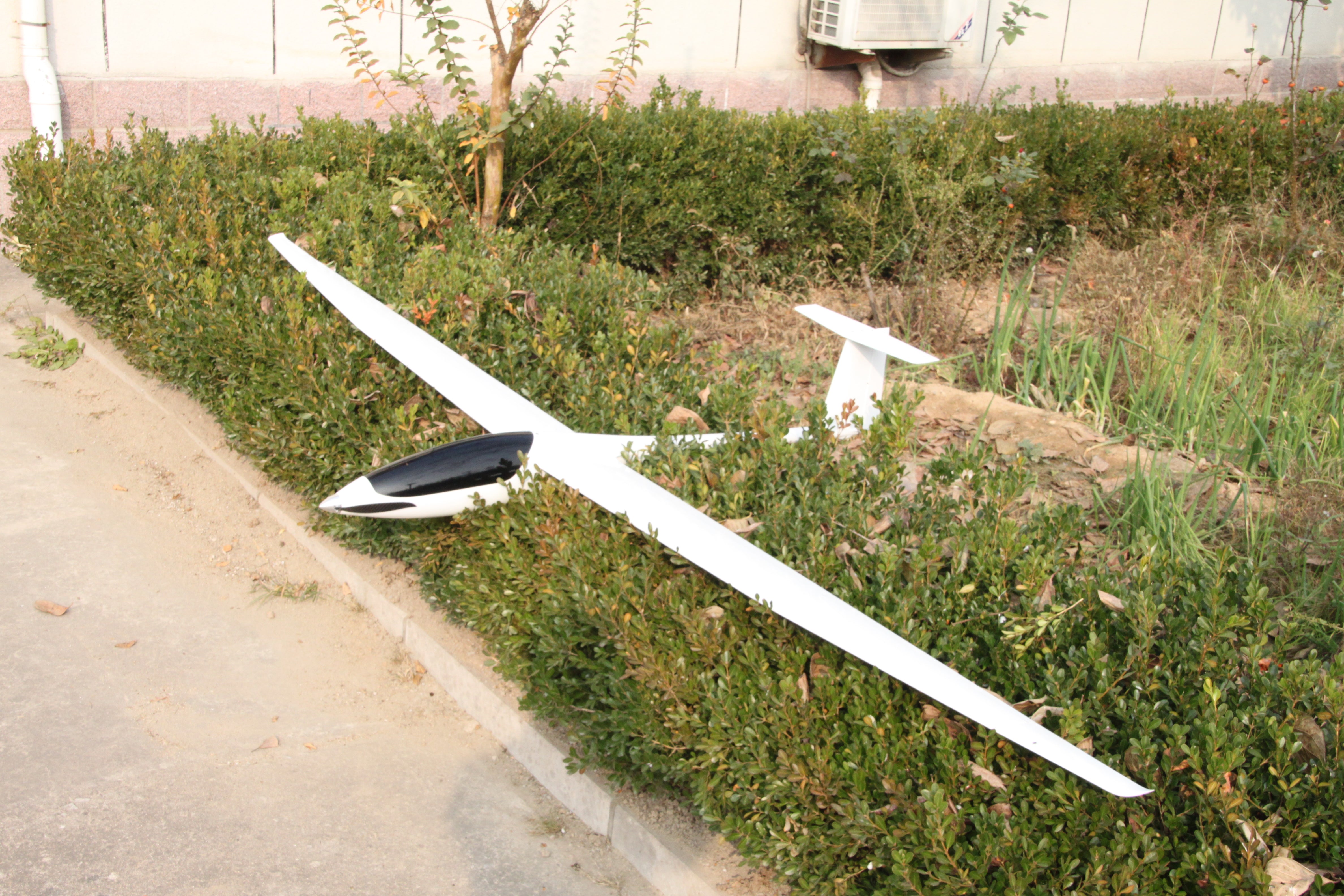

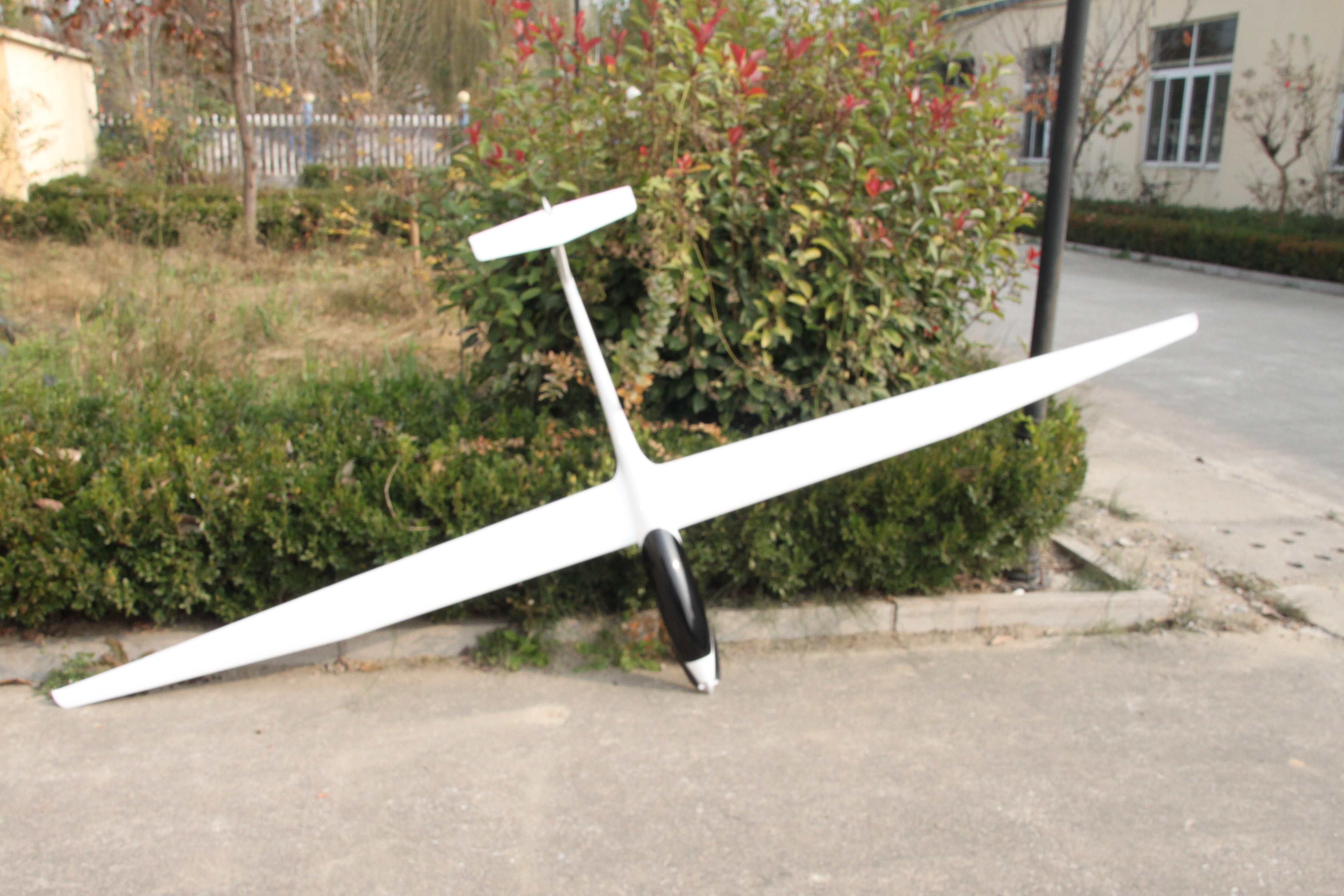

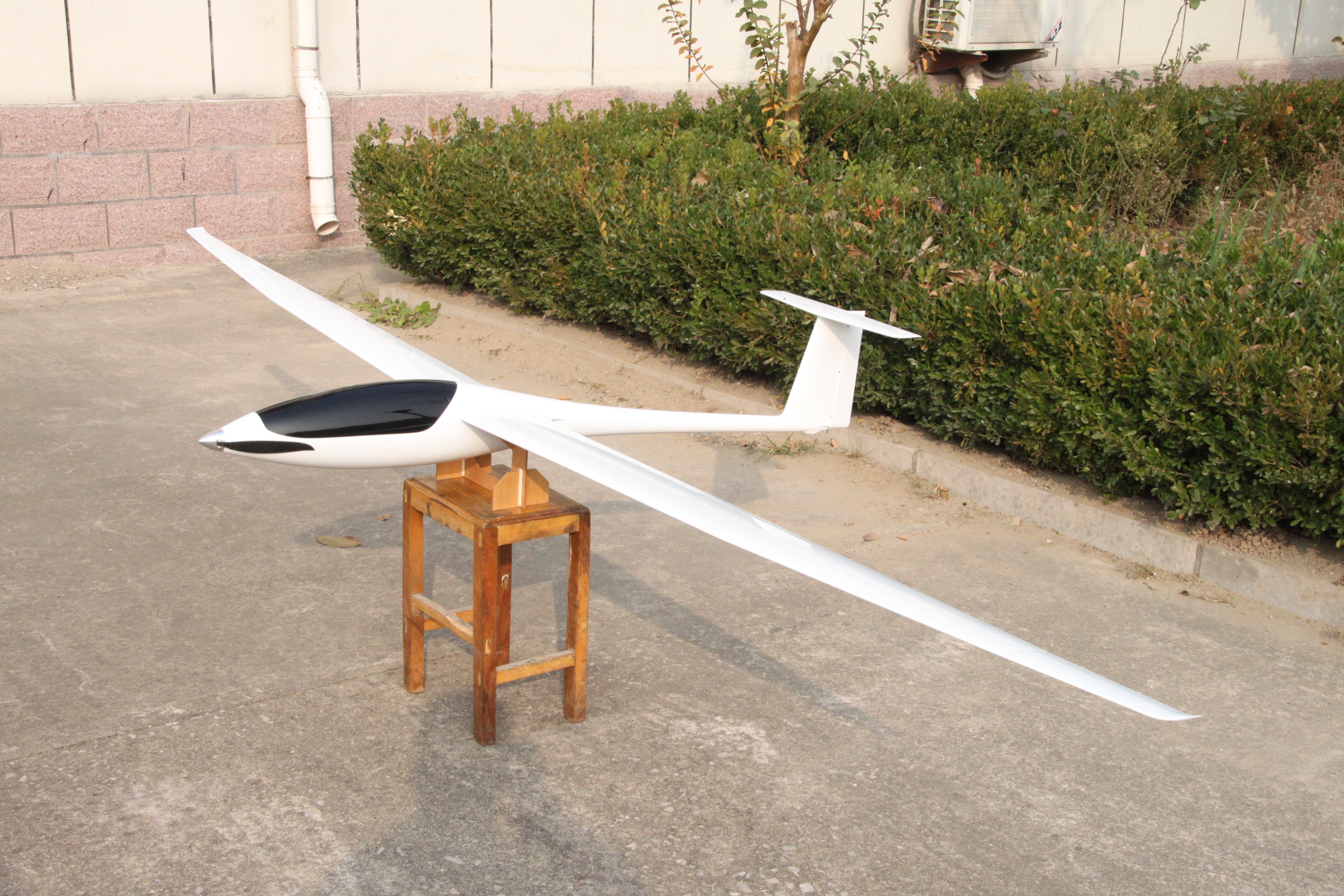

Perfect 3430mm scale glider – E-DG600

DG 600 is one of RCRCM hot-selling RC Gliders, It is designed structural to withstand the stress of aerobatics maneuvers and has an advantage at air shows .

DG 600 is a nice sized model and makes for a perfect first time scale ship. It also flies well on marginal lift with its HQ airfoil. These airfoils offer speed and quick response; it will hold the energy from a dive through all types of soaring aerobatics. To get it in the air, most will slope or aerotow, but with its low weight it can be launched from competition style winches or HD hi-starts.

As with all our scale models, DG 600 is a full molded, high quality airframe that will only require few hours of "building" to get it ready to fly. The wing features a strong carbon spar, molded wing tips and of course the high gloss painted in mold finish. The tail surfaces are hollow molded just as the wing and are removable with screws.

Available in 4 Versions:

Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives good stiffness and torsion stability with lower weight and cost. Highly recommended for sport flying.

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).



Airframe Features:

  • A molded, high quality airframe that will only require few hours of "building" to get it ready to fly
  • Control Surfaces: Rudder, Elevator, Ailerons and Flaps
  • Two-piece hollow molded composite Carbon Fiber or Glass wing design
  • Carbon Fiber reinforced wing with square wing joiner

Includes:

  • RCRCM 3430mm Wingspan Glider – E- DG600
  • Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate



DG600 SECIFICATIONS:

Preferences    Motor

Wingspan:      3430mm

Length:           1380mm

Wing area:    44.5dm²

Flying weight:  N/A

Empty Weight: Fiberglass+Carbon Standard Version:1370g
                         Carbon Version: 1470g

CG:                65 mm from leading edge

Tow hook setting  NO

Ailerons          YES

Elevator         YES

Rudder           YES

Flaps              YES

Required Radio               No less than 6 channels

Recommend equipment configuration for a motorless version   Basic configuration

Servos for wings             KST DS125MG*4(or similar torque servo)

Servos for fuselage        KST DS215MG*1   KST DS113MG*1(or similar torque servo)

Required Battery                4S 14.8V 2200-3300mah 25c

Power System                    LC4250 KV800-1000

Motor Mount Dia.              38mm

Electronic Speed Control    SkyWalker-60A

Fairing size                        40mm

Propeller/EDF                    14*8



Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.

Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.

Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.

DG600 Manual
