Jarvis X Tail
Move your mouse over image or click to enlarge
Jarvis X Tail Jarvis X Tail Jarvis X Tail Jarvis X Tail Jarvis X Tail Jarvis X Tail Jarvis X Tail Jarvis X Tail

RCRCM.com

Jarvis X Tail

$538.99

DESCRIPTION

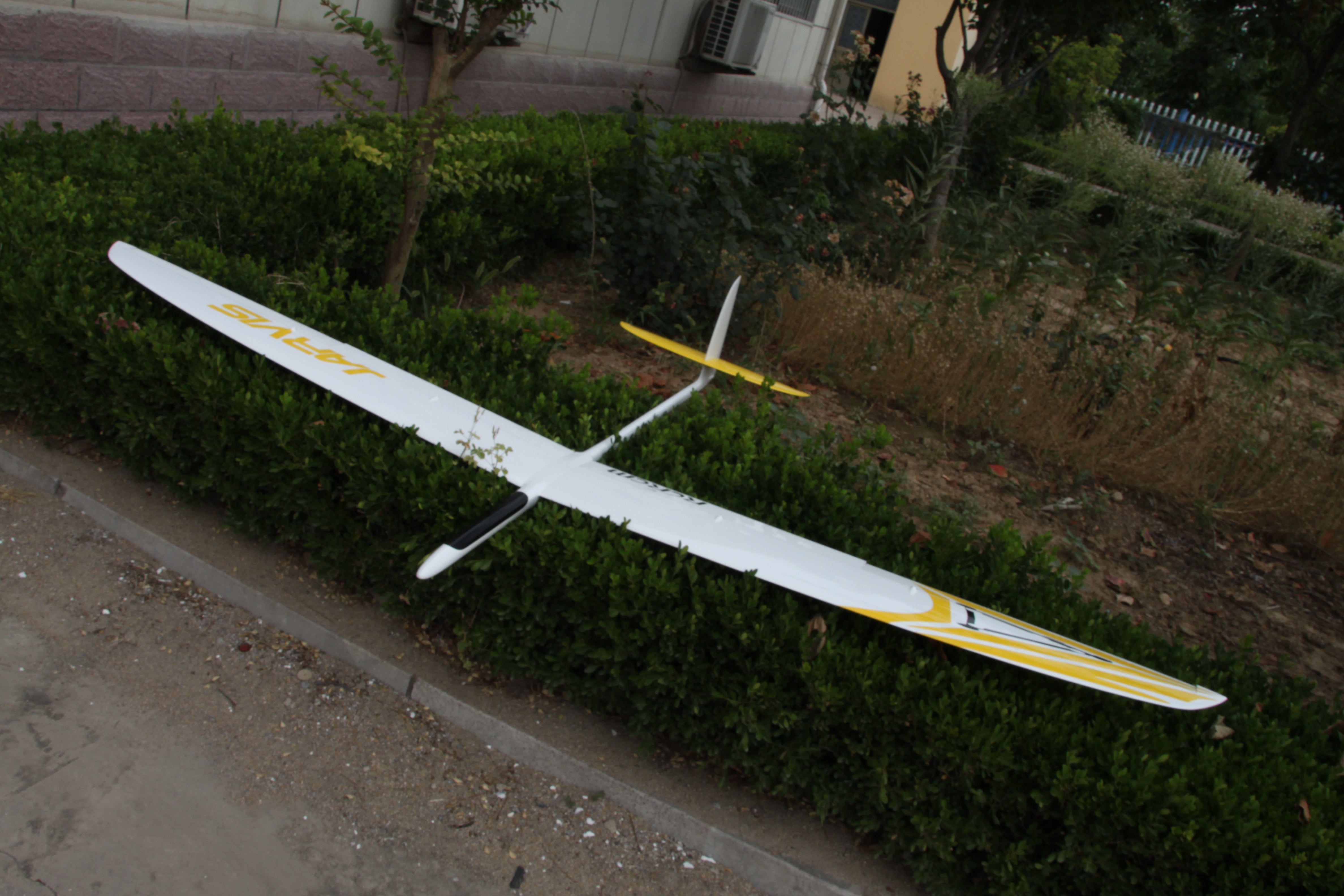

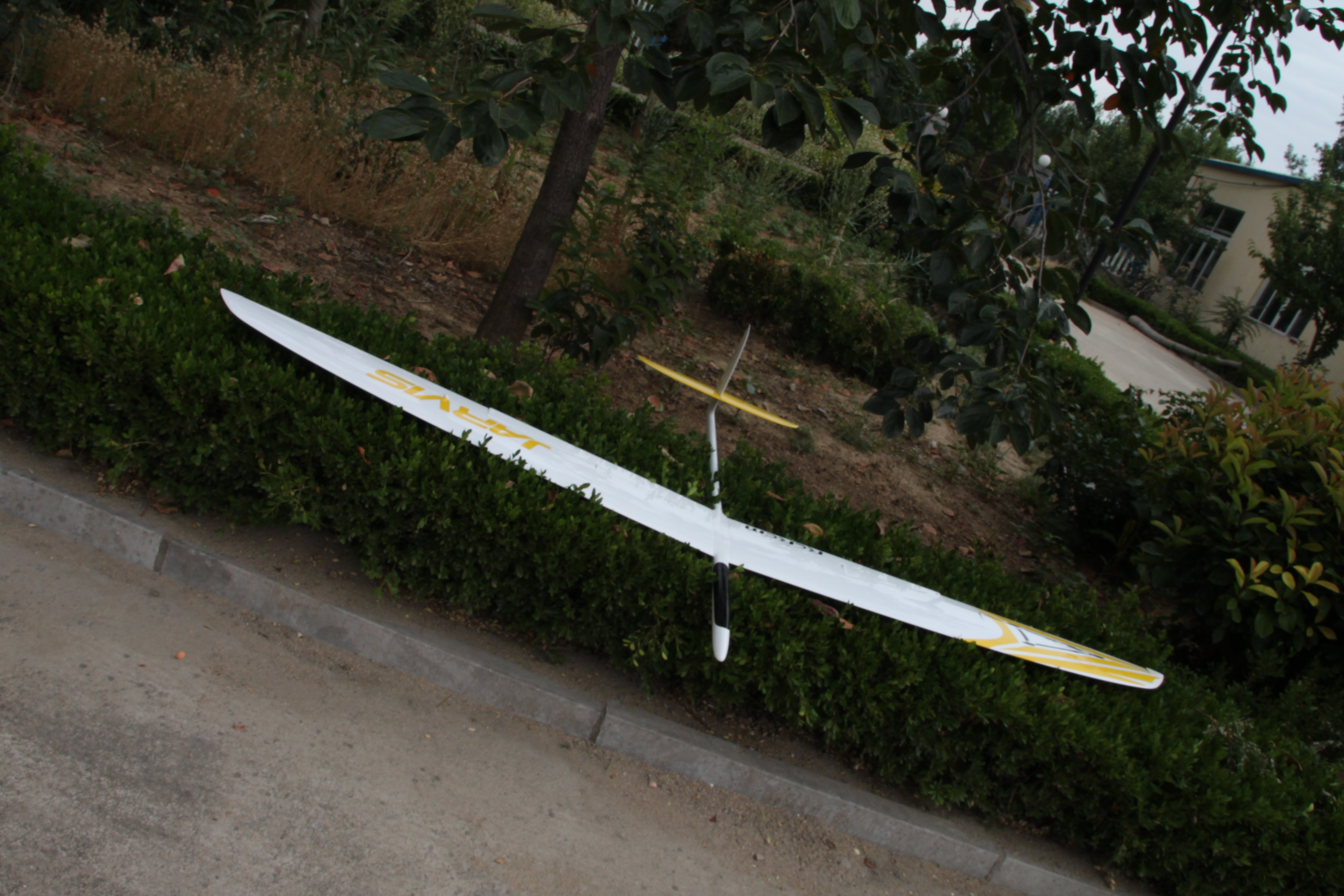

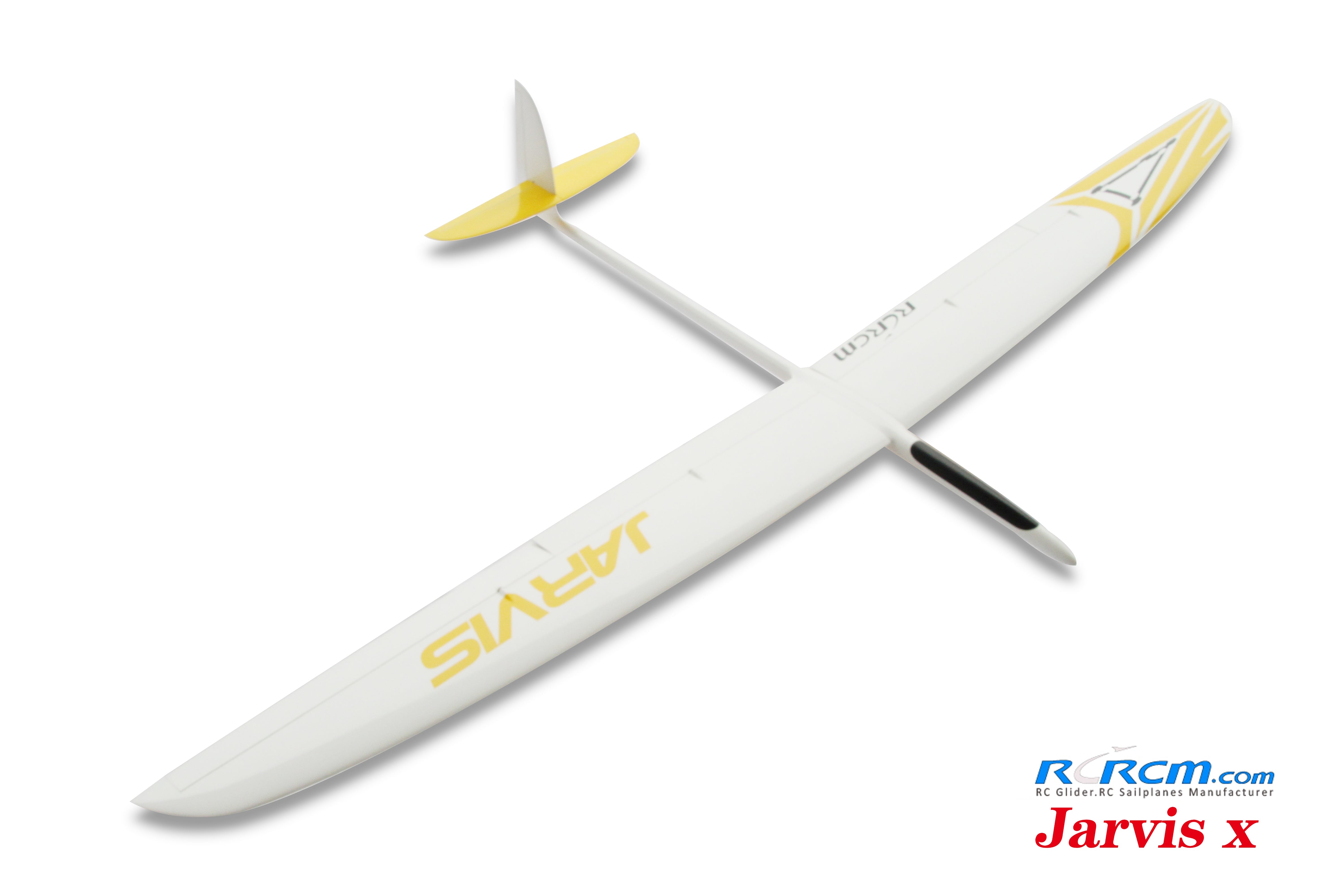

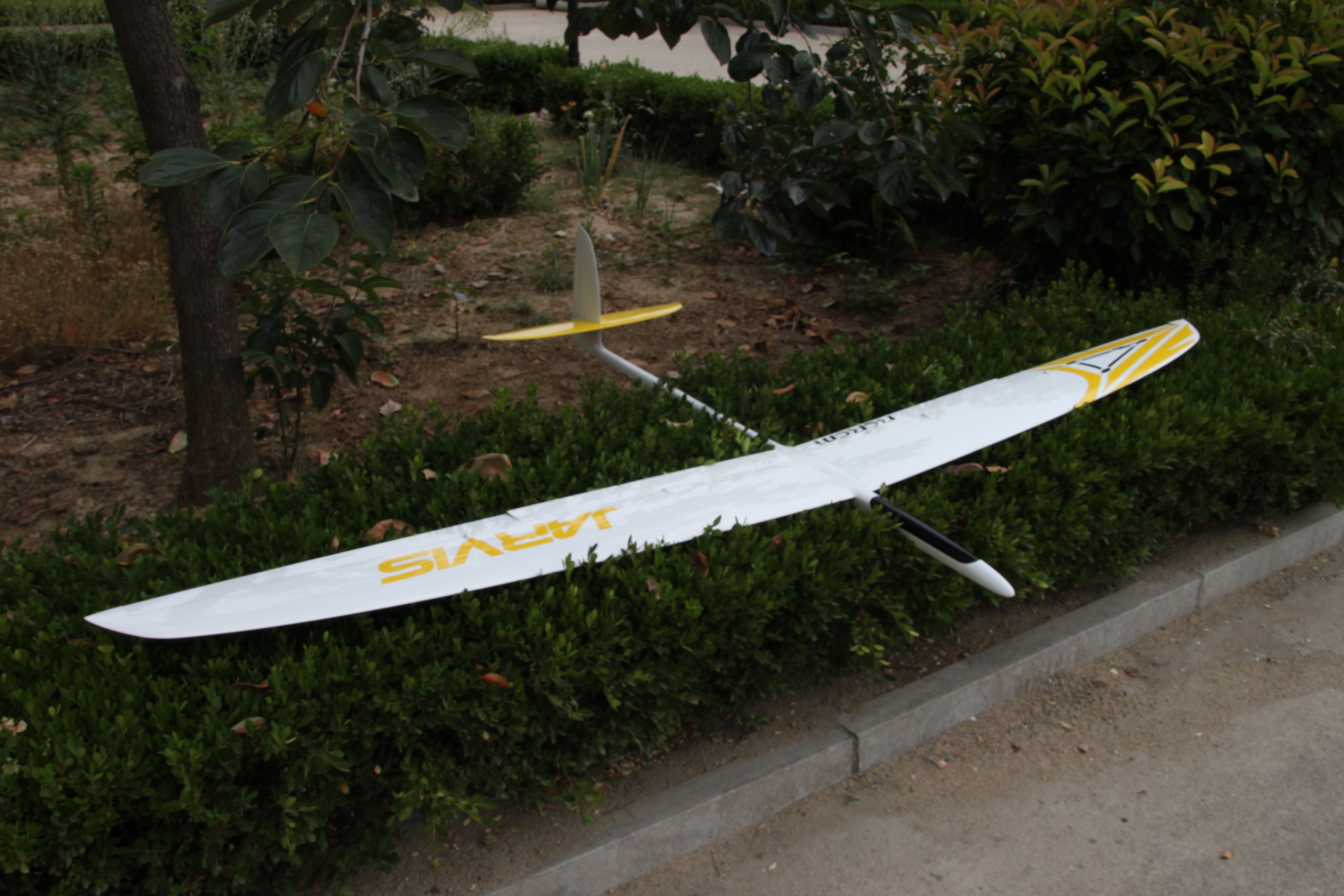

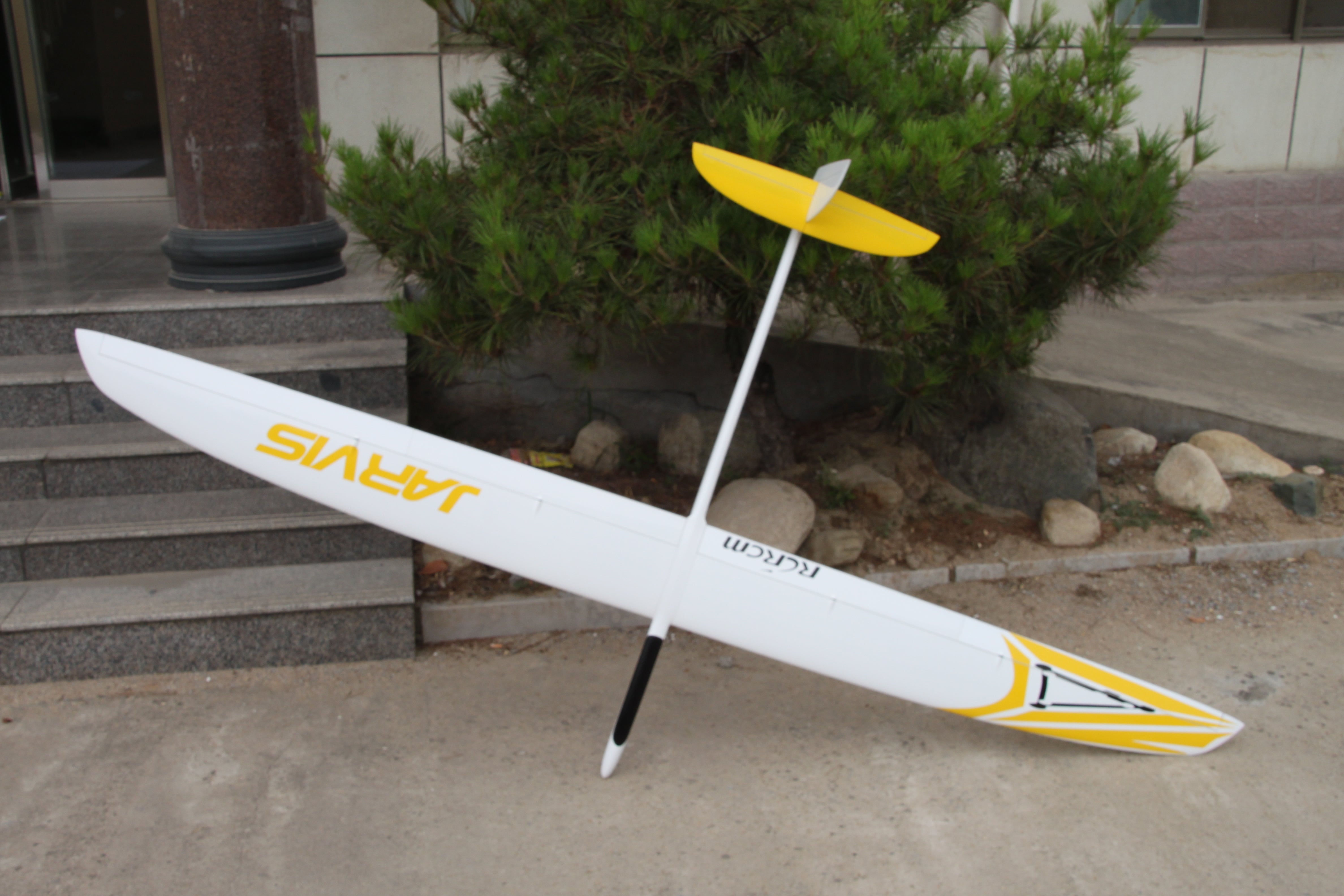

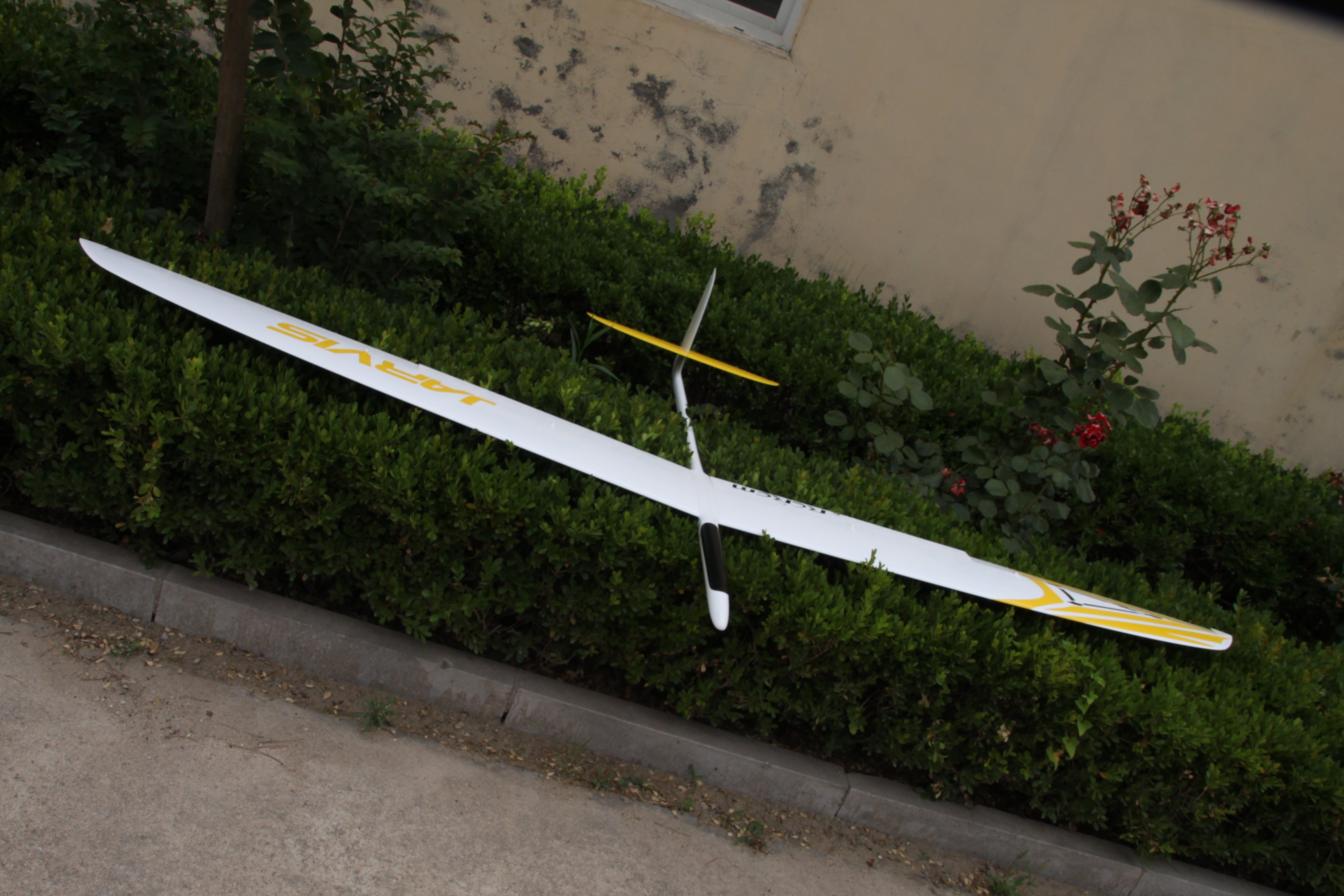

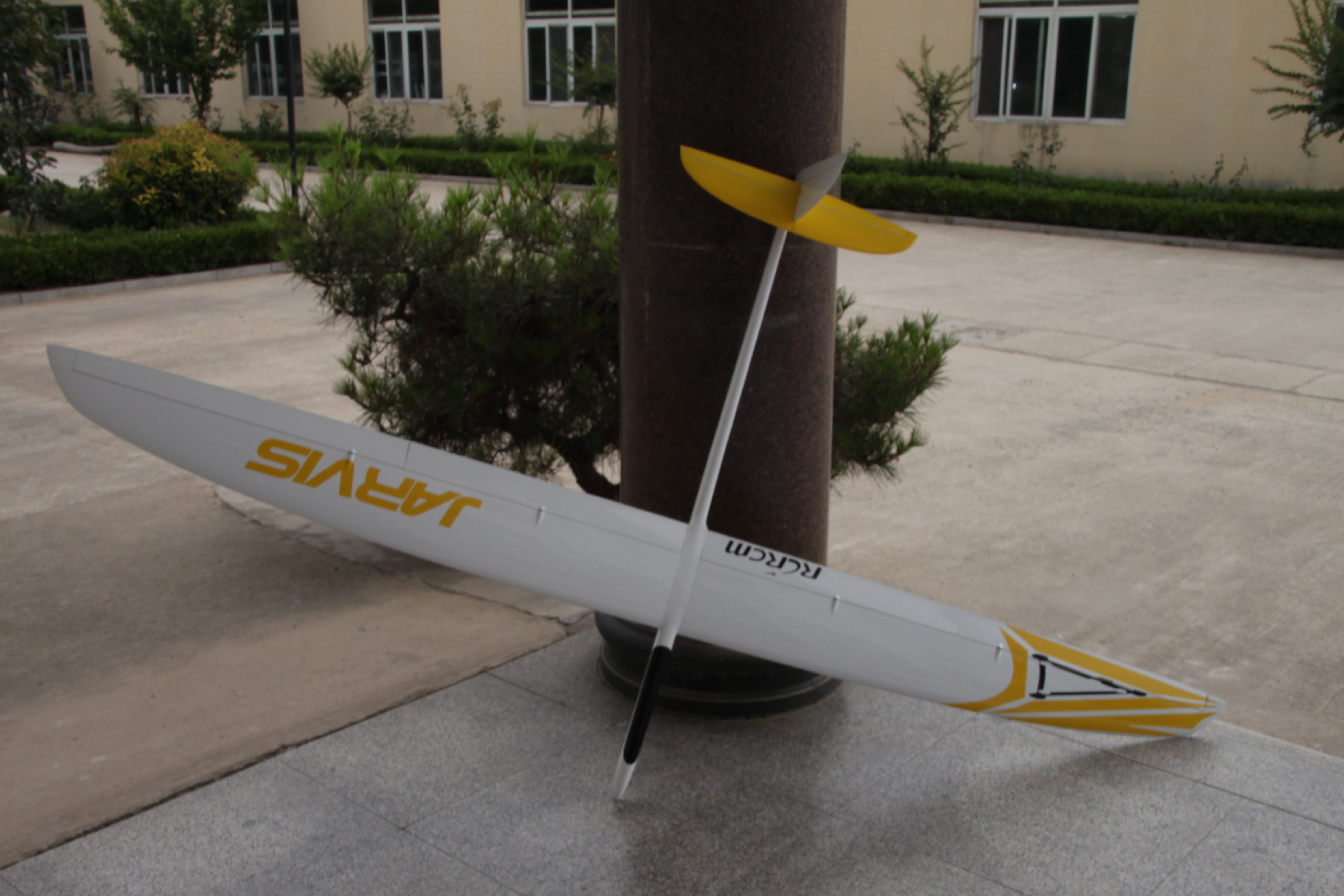

NEW RCRCM 2550mm Wingspan Glider – Jarvis

Hello friends!!

Let me introduce the second glider of the new slope gliders series ... the JARVIS !!

It is a wing glider of 2.55m and Vtail,  full composite and designed for flight in slope that will be fabricated also in Xtail and electric version as well.

In the wings we find two mixed profiles of high performance that will give different benefits depending on the needs of each pilot, which will allow each client to enjoy a high performance flight in different types of slopes.

You can find in the JARVIS the perfect glider for slope when you think in size and performarce.

It is able to get super stall flights resistant, circles almost by itself, can fly long distances without losing altitude and is also very easy to land.

It is a great glider to fly in thermal conditions and get altitude very fast and of course you can get hight speeds very fast.

Made of the best composite materials and special resins, they give to Jarvis the hardness to demand its full potential.

The Pilots will have a glider very easy to transport and ride on the slope and also they will be able to enjoy an agile flight, fast and with high dynamic performance.

As always I want to thank my friends from RCRCM for trusting my designs and is for me a honor to be part of the Rcrcm family!

Carlos Pisarello



Available in 4 Versions:

Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives adequate stiffness and torsion stability with lower weigh and cost. Highly recommended for sport flying.

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first two versions are available in stock. Besides, we have Light Carbon Version(less weight) and Double Carbon Version(with two layers of carbon), the last two versions are customized.

Special Features:

  • Two-piece hollow molded composite Carbon or Fiberglass wing design
  • Carbon Fiber reinforced wing with square wing joiner
  • Live hinges on the wing and rudder with pre-installed wipers
  • Smooth, gel-coated finish with pre-painted graphics
  • Glider fiberglass or full carbon with a beautiful finish comes with all necessary accessories for mounting



Includes:

  • 2.55Meter Wingspan Glider – Jarvis
  • Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate



SPECIFICATIONS:

Preferences                       Motorless

Wingspan:                         2550mm

Length:                              1351mm

Wing area:                         46.7dm2

Flying Weight:                    1940g

Empty Weight:                   Fiberglass+Carbon Standard Version
                                           Carbon Version

CG:                                    95 mm from leading edge

Tow hook setting               NO

Ailerons                             YES

Elevator                             YES

Rudder                              YES

Flaps                                  YES

Required Radio                  No less than 6 channels

Recommend equipment configuration for a motorless version basic configuration

Servos for wings                KST DS125MG*4

Servos for fuselage            KST DS215MG*2



The Settings:

CG: 95 mm from leading edge

Elevator:

max. 10 mm up 10 mm down (10mm are really huge throws. I think with 7 up and down you will be fine)

Rudder:


See elevator but try to program some differential for a smother rudder authority

Ailerons:

15 mm up (or more if you like) 5-8 mm down (or more if you like)

Butterfly:


Ailerons: 5 -15 mm up
depending on what you like. Flaps: 60° - 80°

down
Elevator mix to Flaps: 6mm down



Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website, also include some other color schemes.

Another important thing is about the surface of airplane: RCRCM airplane is fully moulded, Mould precision ensures that each airplane has a complete aerodynamic layout. Yet in the process of composite airplane production, there seldom causes little tiny air bubbles, slight cloth grain, it shouldn’t be regard as a quality issue if it doesn’t affect flight.

About how to storage airplane in case you don’t fly it for a long time: It is better to keep airplane vertical hanging. Never give stress onto airplane surface, so as to avoid deformation.
