E-Typhoon plus XTail
DESCRIPTION：

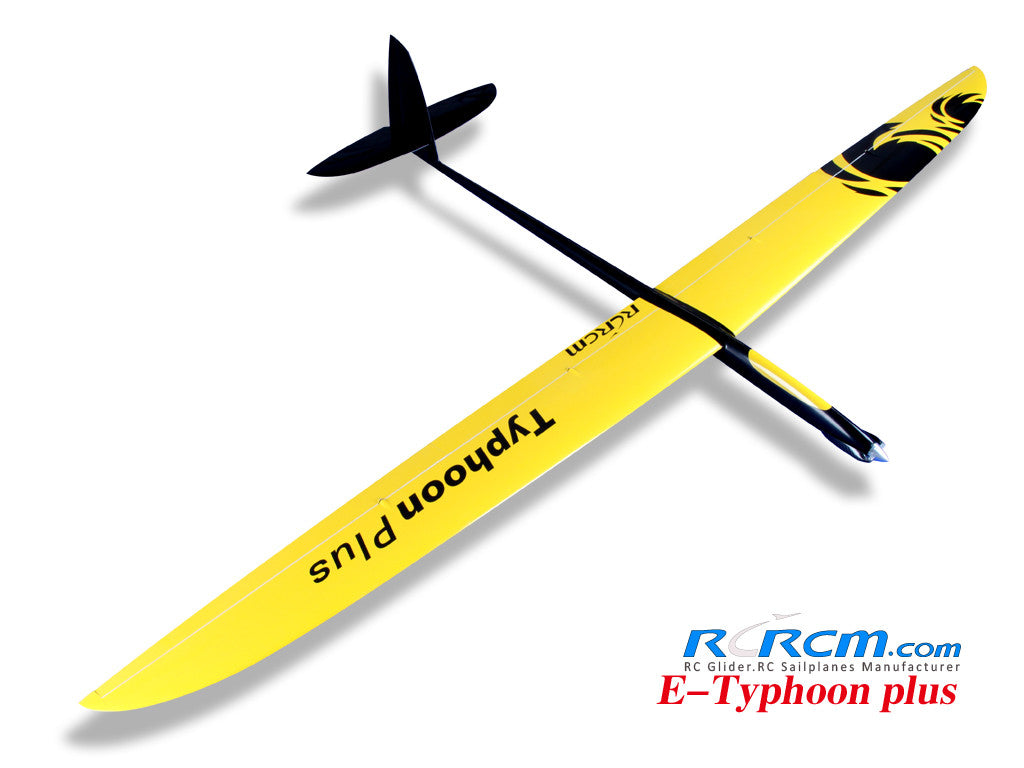

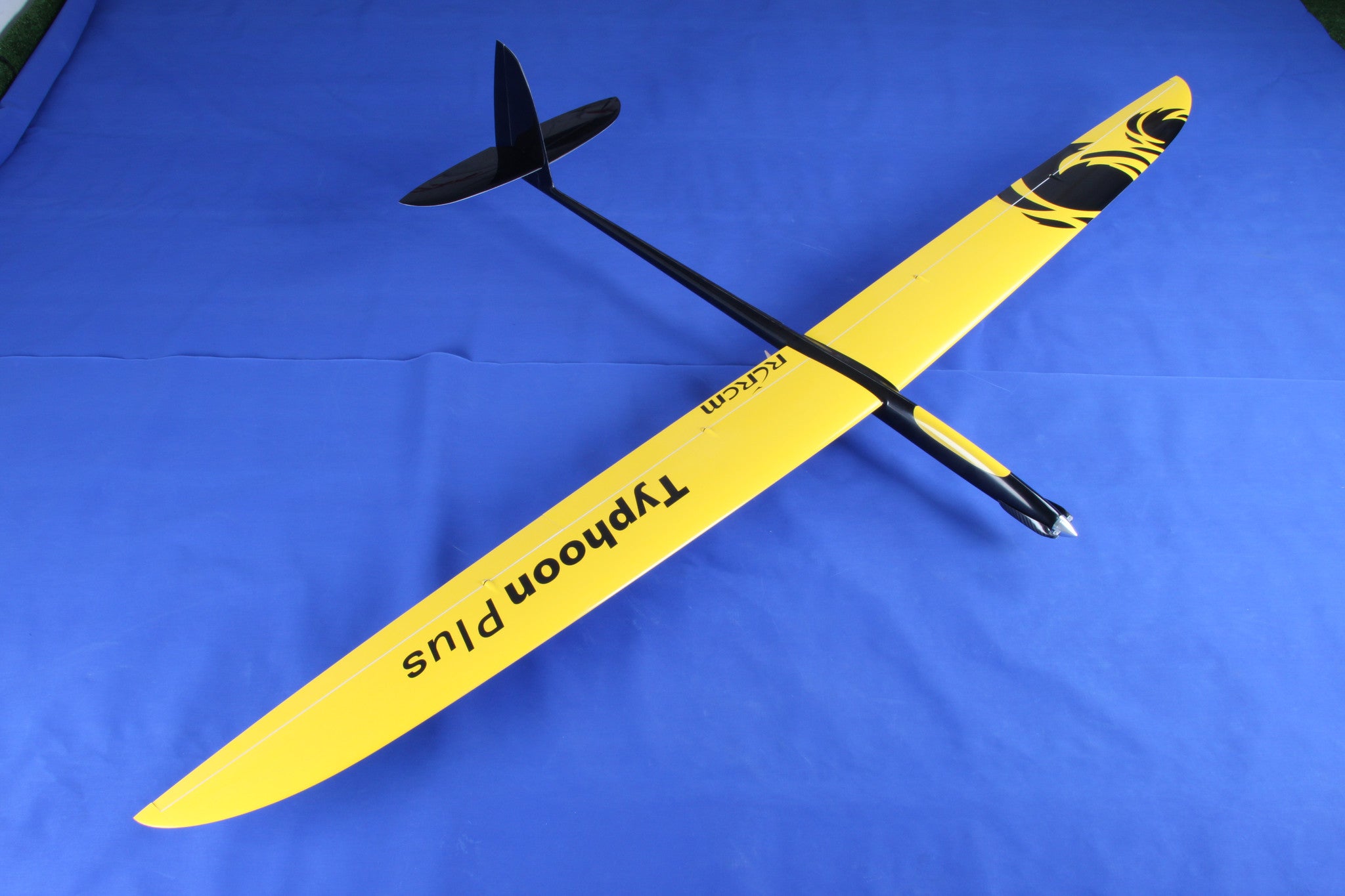

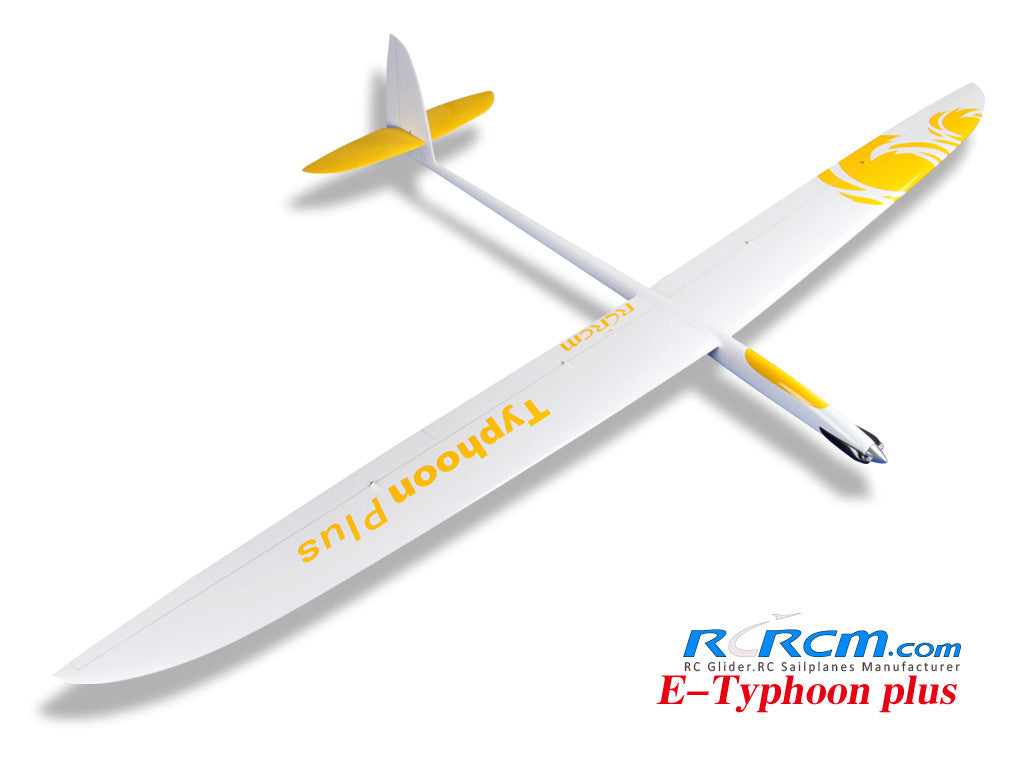

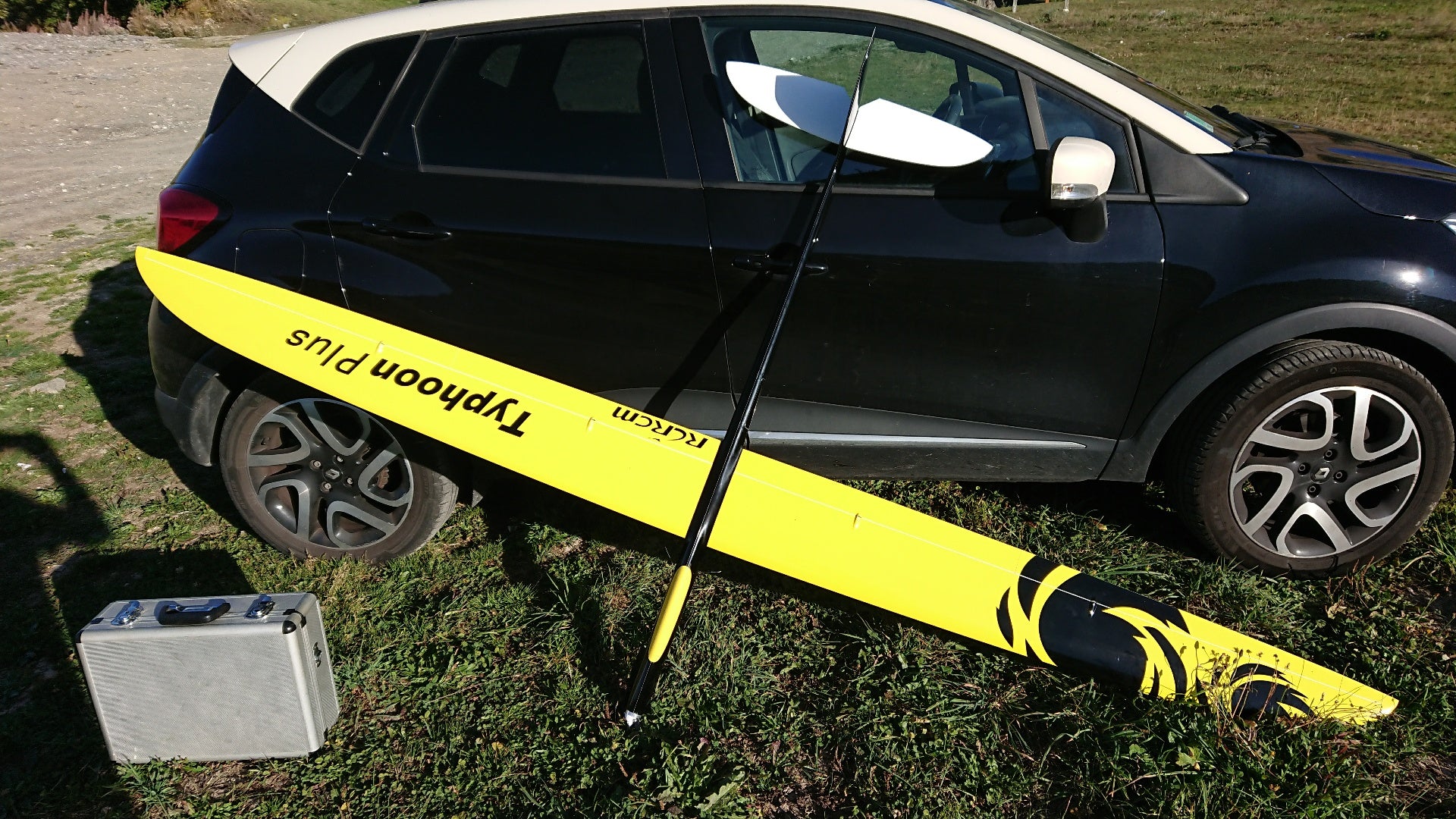

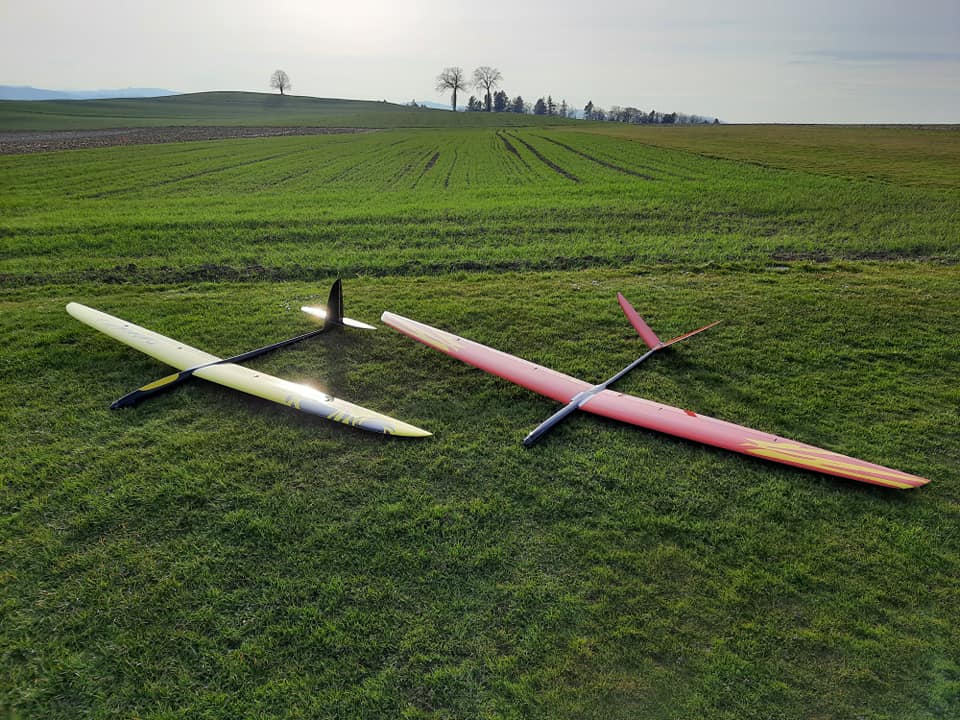

RCRCM 2900mm Wingspan Glider – E-TYPHOON PLUS
Typhoon plus is a big brother of the Typhoon, with a wingspan of 2900mm, it is a great F3F glider. The quality of construction allows it to fly ballast and go fast without any problem, you will have much fun to fly this version of Typhoon.
Glider for intermediate to experienced pilots. Aimed at the flyer who has made his bones on smaller ships and now wants something with higher potential, the Typhoon Plus offers sparkling slope performance, but turns into a pussycat when thermal. For experienced flyers, the plane handles like a dream, has no vices and yet is capable of amazing performance in the right hands.
Available in 4 Versions:
Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives good stiffness and torsion stability with lower weight and cost. Highly recommended for sport flying.
Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.
The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).
Features:
- Control Surfaces: Rudder, Elevator, Ailerons and Flaps
- Two-piece hollow molded composite Carbon Fiber or Glass wing design
- Carbon Fiber reinforced wing with square wing joiner
- Live hinges on the wing and rudder with pre-installed wipers
- Smooth, gel-coated finish with pre-painted graphics
- Full flying stabilizer with pre-installed bellcrank
Includes:
- 2900mm Wingspan Glider – E-Typhoon Plus
- Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate
SPECIFICATIONS:
Preferences Motor
Wingspan: 2940mm
Length: 1560mm
Wing area: 57dm2
Flying Weight: N/A
Empty Weight: Fiberglass+Carbon Standard Version:1640g
Carbon Version: 1740g
CG: 102-104mm from leading edge
Tow hook setting NO
Ailerons YES
Elevator YES
Rudder YES
Flaps YES
Required Radio No less than 7 channels
Recommend equipment configuration for a motorless version Basic configuration
Servos for wings KST DS125MG*4
Servos for fuselage KST DS215MG*2
Required Battery 4S 14.8V 2600mah 25c
Power System LC3542-7T KV780
Motor Mount Dia. 38mm
Electronic Speed Control SkyWalker-60A
Fairing size 40mm
Propeller/EDF 13*7

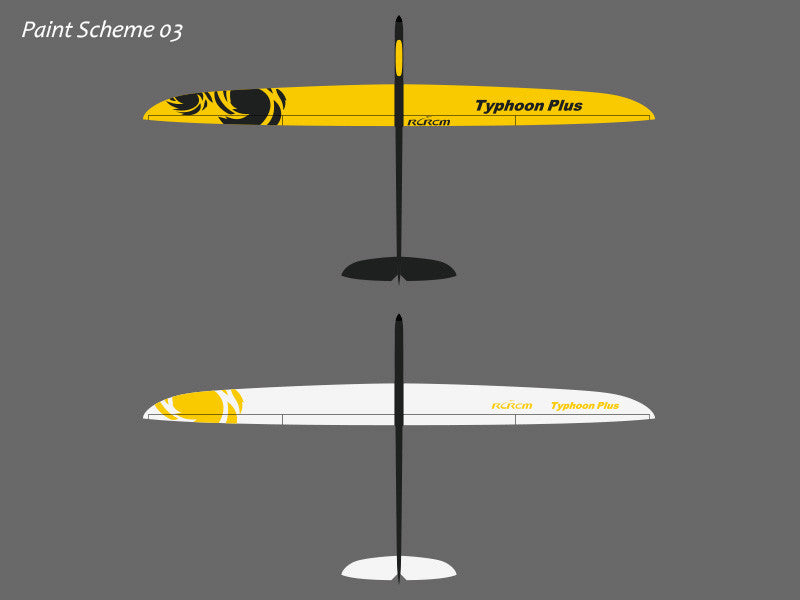

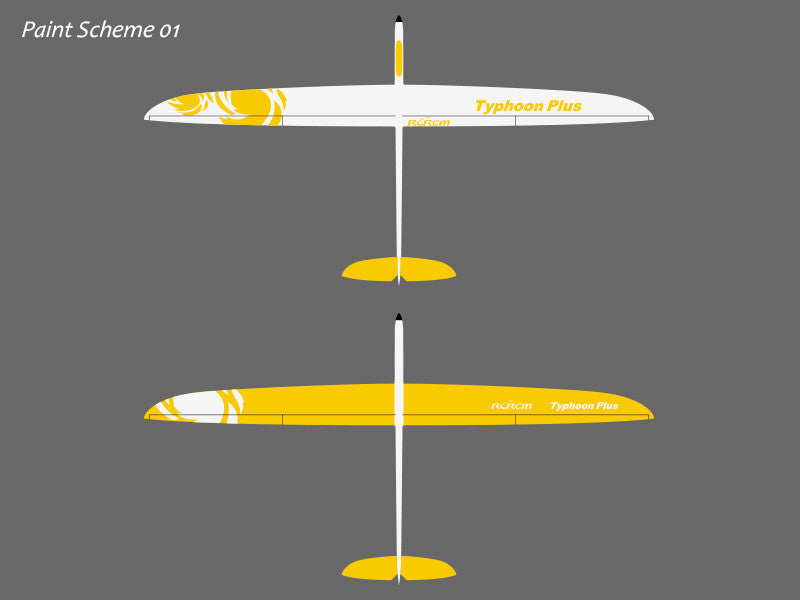

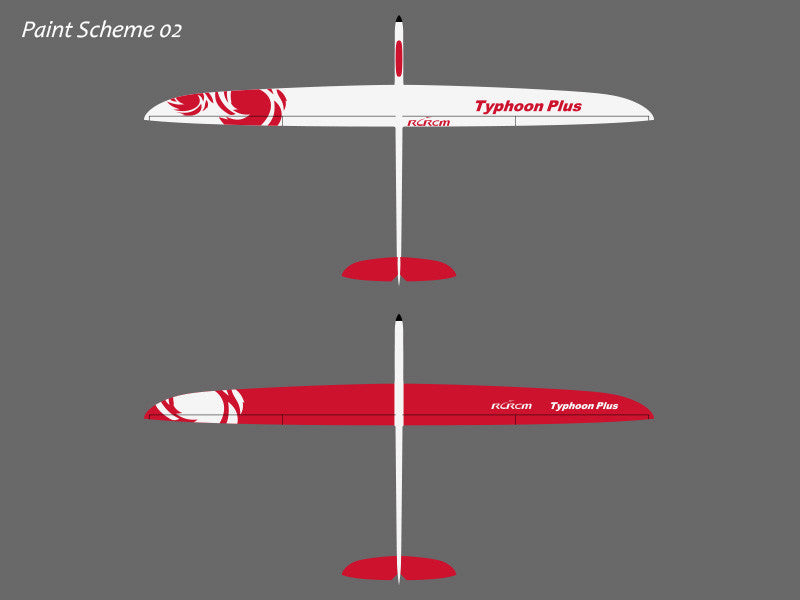

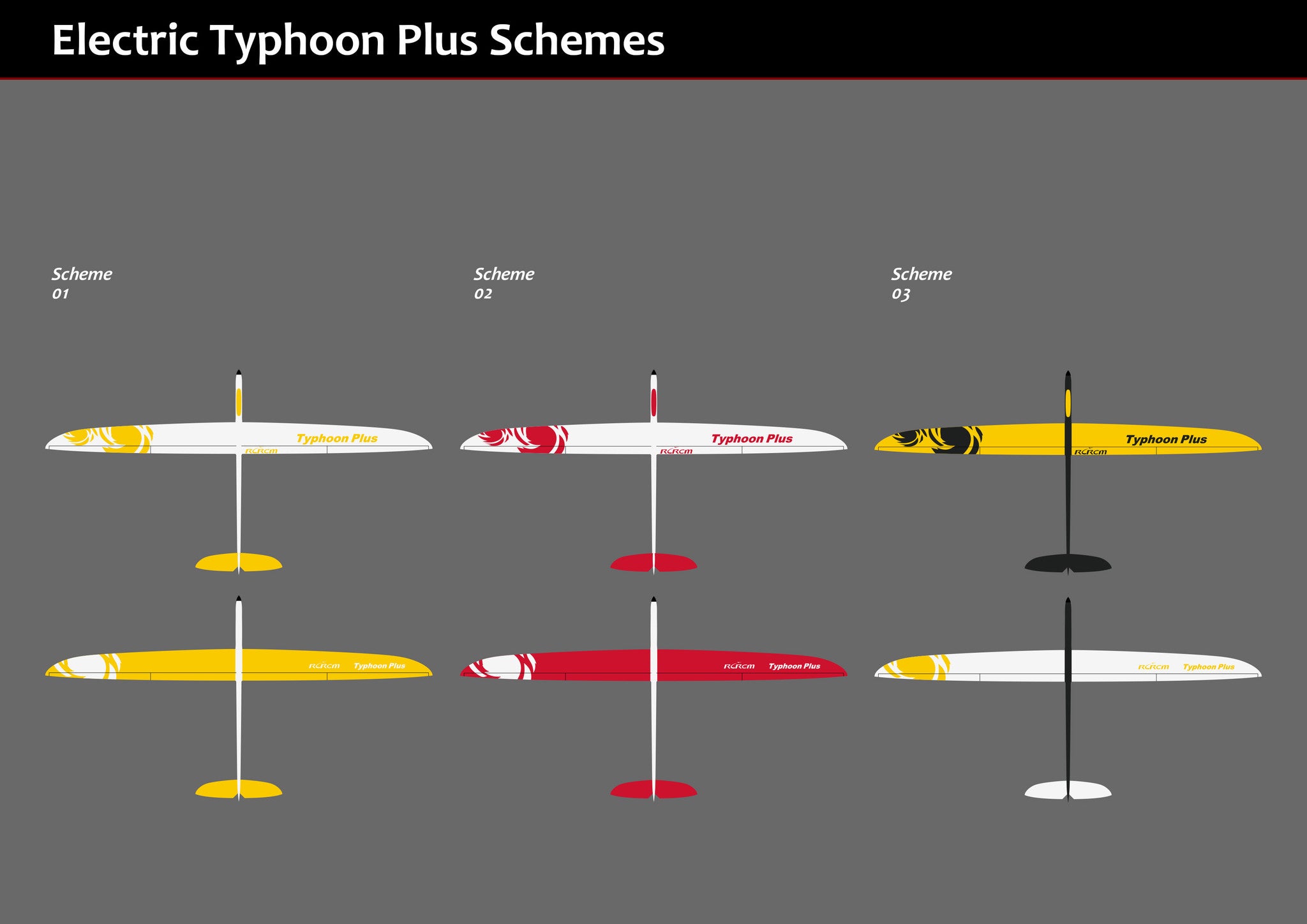

Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.
Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.
Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.
