E-Tomcat XTail
DESCRIPTION：

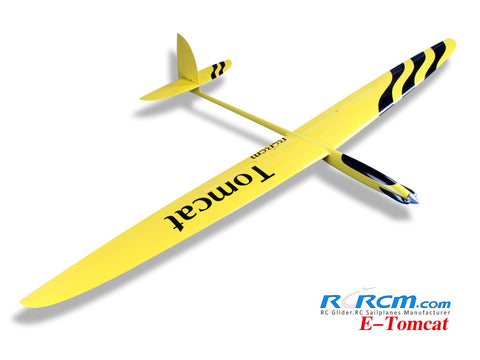

RCRCM 2500mm Wingspan Glider – TOMCAT
Tomcat is a glider for intermediate to experienced pilots. Tomcat is an expert for the flight of sustained slope type F3F. The wings have shutters and fins for all types of mixes for figures and precise landings. The fuselage is carbon reinforced at the root and a few strands are present at edge. Carbon ribbons reinforce the rear beam.
Tomcat is part of a new generation of compact, precision, full composite, hollow molded sailplanes. This new generation of sailplanes are designed and built to be extremely lightweight with great strength and full competition capabilities. Clean, efficient designs are sure to satisfy the most demanding pilots. The strong and lightweight canopy gives easy radio and battery access. If you have the mixing capabilities, combinations of ailerons and flaps can be us increase the soaring and speed capabilities. The elliptical planform supports a very large speed envelope, with no nasty habits at low speed. The wing is two part, with a carbon joiner and a removable horizontal tail. The wings and fuse are ready for your plug and play harness setup, allowing for super fast assembly on the slopes. The fit and finish of the Tomcat is similar to much more expensive models, yet it still has an industry leading level of value.
Available in 4 Versions:
Fiberglass+Carbon Standard Version: Standard hollow molded fiberglass construction reinforced with carbon fiber which gives good stiffness and torsion stability with lower weight and cost. Highly recommended for sport flying.
Carbon Version: Wings built using full carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.
The first two versions are available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).
Special Features:
- Two-piece hollow molded composite Carbon or Fiberglass wing design
- Carbon Fiber reinforced wing with square wing joiner
- Live hinges on the wing and rudder with pre-installed wipers
- Smooth, gel-coated finish with pre-painted graphics
- Glider fiberglass or full carbon with a beautiful finish comes with all necessary accessories for mounting
Includes:
- 2.5Meter Wingspan Glider – Tomcat
- Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate
SPECIFICATIONS:
Preferences Motor
Wingspan: 2490mm
Length: 1280mm
Wing area: 44dm2
Flying Weight: N/A
Empty Weight: Fiberglass+Carbon Standard Version:1240g
Carbon Version: 1310g
CG: 96 mm from leading edge
Tow hook setting NO
Ailerons YES
Elevator YES
Rudder YES
Flaps YES
Required Radio No less than 7 channels
Recommend equipment configuration for an electric version Basic configuration
Servos for wings KST DS125MG*4
Servos for fuselage KST DS215MG*2
Required Battery 3S 11.1V 2200mah 25c
Power System LC3542-6T KV920
Motor Mount Dia. 38mm
Electronic Speed Control SkyWalker-60A
Fairing size 40mm
Propeller/EDF 13*7
Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.
Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.
Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.
