RCRCM.com

Angela

$599.99

DESCRIPTION

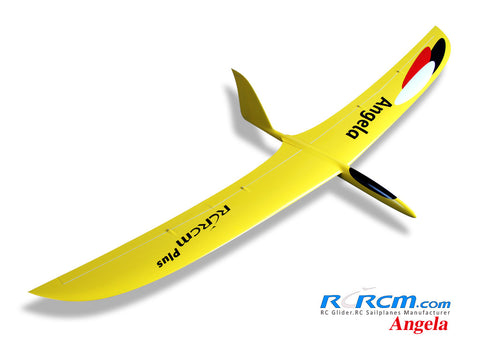

2000mm Wingspan RCRCM RC Glider – Angela

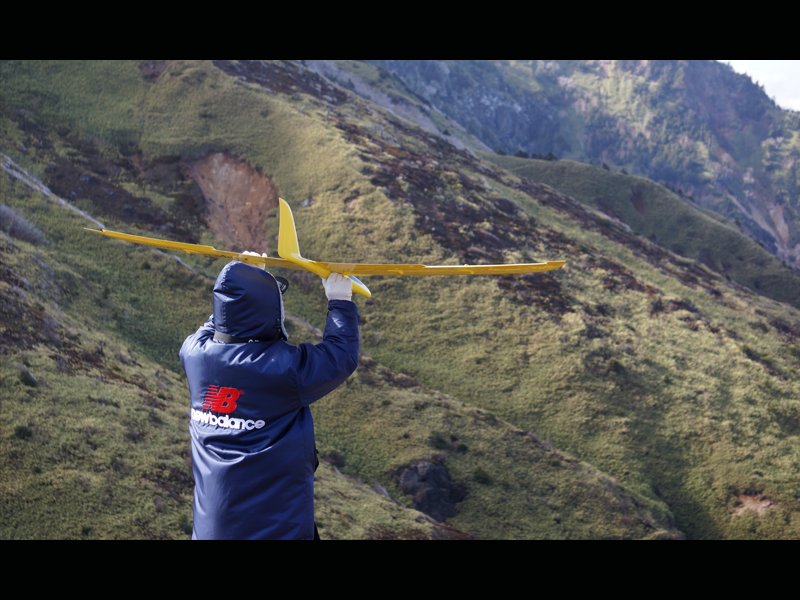

Superb flying wing - Angela is fully molded with composite material, it has good performance in slope soaring. Angela is equipped with ailerons, flaps and rudder. It looks like a “pterodactyl” when flying in the sky!

Available in 3 Versions:

Carbon Version: Wings built using carbon cloth as well as fuselage reinforced with carbon from leading edge of the wing to the tail. This configuration gives the model enormous stiffness and torsion stability.

The first version is available in stock. We also can produce two custom versions; Light Carbon Version (less weight) and Double Carbon Version (with two layers of carbon).

 Features:

  • Completely new special design.
  • Friendly Flying Characteristics
  • Top Quality finish
  • Easy Handling
  • 2000mm Wingspan



Includes:

  • 2000mm Wingspan RCRCM RC Glider
  • Ballast Tube(for Motorless Glider only) , Motor mount(for electric version only), servo support, Push Rod, Clevis, Linkage Rod, Control horn, Servo Cover, Wing joiner, tail joiner, servo plate



    SPECIFICATIONS:

    Preferences                  MOTORLESS

    Wingspan:                      2000mm

    Length:                            835mm

    Wing area:                      35dm2

    Flying Weight:                N/A

    Empty Weight:             Fiberglass+Carbon Standard Version:730g
                                         Carbon Version: 840g

    CG:                               65-68 mm from leading edge

    Tow hook setting           NO

    Ailerons                         YES

    Elevator                         NO

    Rudder                          YES

    Flaps                              YES

    Required Radio              5 channels



    Recommend equipment configuration for a motorless version

    Basic configuration

    Servos  for wings     KST DS135MG*4

    Servos  for fuselage   KST DS245H*1



    Paint Scheme is also available in a wide range of colors, besides standard color scheme presents on this website and can also include some other color schemes.

    Another important thing about the surface of the glider: this RCRCM glider is fully moulded. Mould precision ensures that each glider has a complete aerodynamic layout but in the process of composite production, there is a slight chance of very tiny air bubbles or slight cloth grain. In the unlikely event that these small imperfections exist, they do not affect the structural strength or flight performance.

    Glider long term storage: Hang glider vertically to reduce the stress on the glider surfaces to avoid deformation that could adversely affect flight performance and trim.



    Angela Manual
